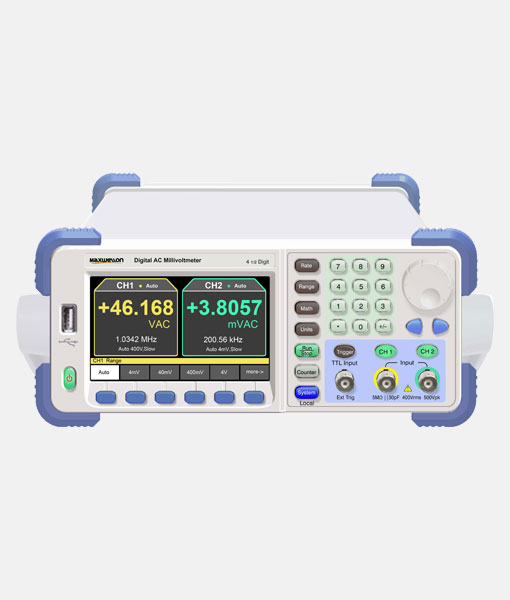

The MX1942-6 and MX1942-12 are 4½-digit LCD display dual-channel digital AC millivoltmeters with a frequency range of 5Hz to 6MHz and 5Hz to 12MHz, respectively. These instruments serve as both digital AC millivoltmeters and can function as power meters and level meters. Additionally, they have the capability to simultaneously display frequency values and can be used independently as frequency counters.
Key Features
◼︎Measurement voltage range: 50 μ V~400Vrms, 500V peak
◼︎Measuring power level: -83.8dBm~54.2dBm
◼︎Measurement power: 0.00417nW to 266.6W
◼︎Measure voltage level dBV range: -86dBV~52.04dBV
◼︎Input resistance of millivolt meter: 5M Ω, parallel capacitance of about 30pF
| Model | MX1942-6 | MX1942-12 |
| Channels | Dual Channel | |
| Frequency Bandwidth | 5Hz ~ 6MHz | 5Hz ~ 12MHz |
| Voltage Measurement Range | 50μV ~ 400Vrms | |
| Voltage Measurement Ranges | 4 mV, 40 mV, 400 mV, 4 V, 40 V, 400V | |
| Input Impedance | 5MΩ 30PF | |
For more detailed information, please download the PDF Datasheet above.
The MX1942-6 and MX1942-12 are 4½-digit LCD display dual-channel digital AC millivoltmeters with a frequency range of 5Hz to 6MHz and 5Hz to 12MHz, respectively. These instruments serve as both digital AC millivoltmeters and can function as power meters and level meters. Additionally, they have the capability to simultaneously display frequency values and can be used independently as frequency counters.
For more detailed information, please download the PDF Datasheet above.
