TW4401 Microwave Multifunctional Analyzer

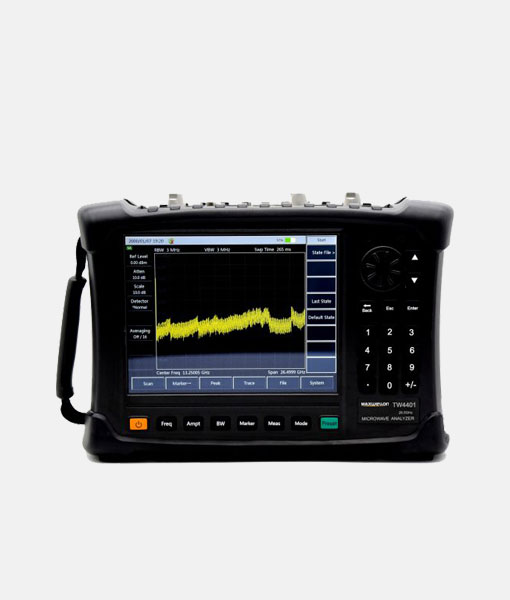

Maxwellon TW4401 series Microwave Multifunctional Analyzer has the wide frequency range from 30kHz to 18GHz/26.5GHz/40GHz. It integrates multiple functions such as dual-port vector network analysis, cable and antenna feeder test, vector voltage measurement, spectrum analysis,field strength measurement power measurement, providing you with powerful comprehensive test capabilities. TW4401 series microwave analyzer is widely used in the radar performance test and cable TV, wireless communication field.

Key Features

◼︎Dual-port vector network analysis

◼︎Cable and antenna feeder test

◼︎Vector voltage measurement

◼︎Spectrum analysis

◼︎Field strength measurement

◼︎USB power sensor

TW4401 Microwave Multifunctional Analyzer

Overview Specifications Ordering

Vector Network Analysis(Standard Configuration)
Frequency Range	TW4401D: 30 kHz to 18 GHz, TW4401E: 30 kHz to 26.5 GHz, TW4401F: 50 MHz to 40 GHz
Frequency Accuracy	±1×10^-6
Power Range	Big, small, manual
Output power accuracy	TW4401D:±2.5dB, 10MHz~18GHz TW4401E:±2.5dB, 10MHz~26.5GHz TW4401F:±2.5dB, 10MHz~26.5GHz; ±3.0dB 26.5GHz~40GH
Spectrum Analysis(Standard Configuration)
Frequency Range	TW4401D: 100 kHz to 18 GHz, TW4401E: 100 kHz to 26.5 GHz, TW4401F: 100 kHz to 40 GHz
Resolution Bandwidth	1Hz – 5MHz (step by 1,3,10)
Video Bandwidth	1Hz – 5MHz (step by 1,3,10)
Cable & Antenna Feeder Test(Optional)
Frequency Range	TW4401D: 30 kHz to 18 GHz, TW4401E: 30 kHz to 26.5 GHz, TW4401F: 50 MHz to 40 GH
Frequency Accuracy	±1×10^-6
Power Level	Big, small
Data Points	11 – 10001
Effective Directivity	TW4401D: 32dB – 40dB, TW4401E: 30dB – 40dB, TW4401F: 28dB – 35dB

For more detailed information, please download the PDF Datasheet above.
