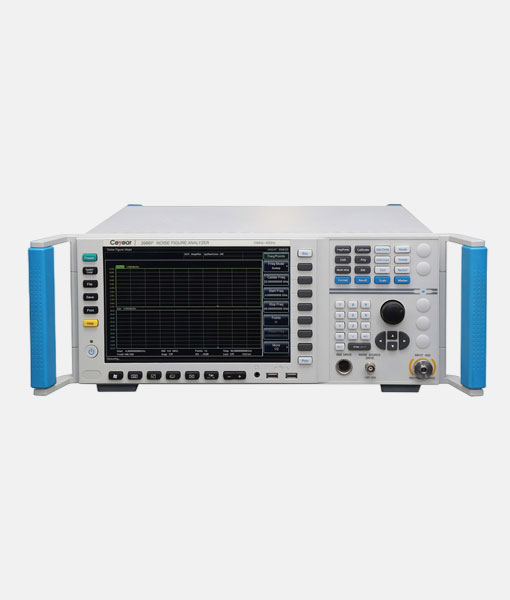

3986 Series Noise Figure Analyzers include 3986A (10 MHz to 4 GHz), 3986D (10 MHz to 18 GHz), 3986E (10 MHz to 26.5 GHz), 3986F (10 MHz to 40 GHz) and 3986H (10 MHz to 50 GHz). Features of the product include wide-range frequency coverage, high-sensitivity reception, friendly user interface, big screen dual channel HD display, various external interfaces, and dual noise source drive etc. It can measure the noise figure and gain of amplifiers, up converters and down converters, as well as to support automatic measurement of noise figure of multi-stage converters. Guide interfaces are intuitive for setting measurement modes. The comprehensive loss compensation function can compensate loss induced in measurement channel before and/or after the device under test by means of fixed or table forms.
Key Features
◼︎Wide frequency coverage
◼︎High-sensitivity reception and high-precision measurement performance
◼︎Amplifier, Up converter and down converter measurement mode
◼︎Single sideband and double sideband measurement function
◼︎Comprehensive loss compensation function
◼︎Flexible file and table processing functions
| Frequency Range | 10 MHz to 4 GHz/18 GHz/26.5 GHz/40 GHz/50 GHz |
| Accuracy of Frequency Reference | ±<0.2ppm (23°C±3°C) |
| Accuracy of Frequency Tuning | ±< (Reference frequency error +100 kHz) 10 MHz to 4 GHz ±< (Reference frequency error +400 kHz) 4 GHz to 18/26.5/40/50 GHz |
| Noise Figure Measurement Range | 0 to 30 dB (ENR: 12 dB to 17 dB) |
| Noise Figure Uncertainty Measurement | ±<0.1 dB |
| Gain Measurement Range | -20 dB to +40 dB |
| Gain Measurement Uncertainty | ±<0.17 dB |
For more detailed information, please download the PDF Datasheet above.
