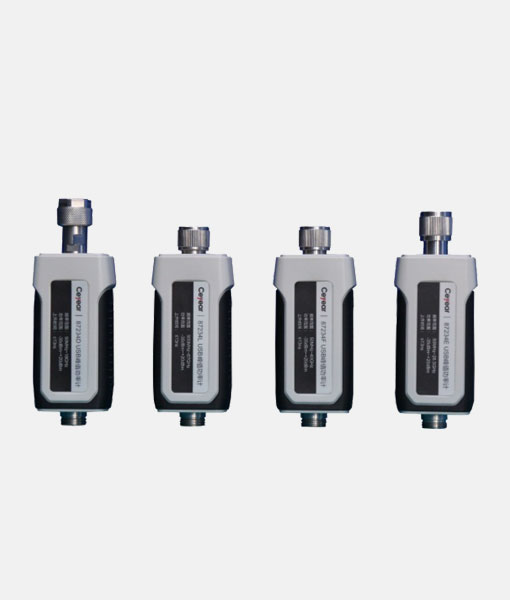

87234 USB Peak and Average Power Sensor

The S87234D/E/F/L USB peak and average power sensor is a diode-detection broadband power measurement instrument based on the USB 2.0 interface, which can realize accurate average power measurement, pulse power measurement with large dynamic range and CCDF statistical measurement analysis. The frequency range covers 50MHz to 67GHz, the highest power accuracy can reach 0.2dB, the video bandwidth is ≥30MHz, and the rise/fall time is ≤13ns. This product is small in size, light in weight, and uses USB interface for power supply and communication. It can be connected to a computer for use. S87234 series can flexibly expand the power measurement function of electronic measuring instruments and test systems, and is mainly used for field testing, production line testing and system integration.

Key Features

◼︎High frequency up to 67GHz

◼︎Excellent dynamic range and accuracy

◼︎CCDF statistical measurement analysis

◼︎Internal zero calibration function

◼︎Built-in trigger input function

◼︎Automatic measurement function, including 16 pulse power and time parameters

◼︎Excellent measurement speed, up to 50,000 readings per second

◼︎Built-in radar and wireless presets

◼︎External trigger buffer measurement

◼︎Small size and easy to carry
