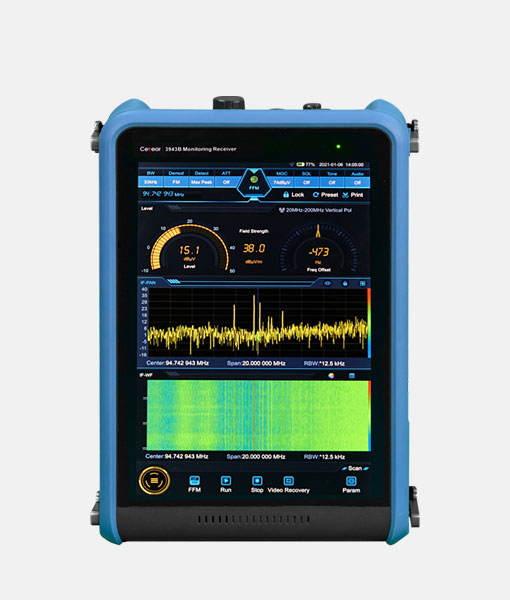

The overall size of the handheld monitoring receiver is 182.5mm×289mm×69mm, the weight of the whole machine is less than 3.5kg, the working time is 3-4h with battery, the display is 10.1-inch TFT, and the integrated touch screen. With multiple functions such as radio signal search, interception, measurement, analysis, demodulation, direction finding, positioning, etc., it can be used to perform emission monitoring, coverage measurement, illegal emission source/interference source rapid detection and positioning, and major activities that comply with ITU specifications Radio security and other tasks. The whole machine adopts a full touch screen design, and the software supports multi-touch interactive mode. The touch operation experience of the smart phone is completely transplanted to the monitoring receiver device. The users can conveniently complete the display trajectory zoom in, zoom out, window movement, parameter setting and other operations through touch gestures, providing a user-friendly UI interface to the greatest extent, so that the user can operate the monitoring receiver just like using a mobile phone or a pad computer.
Key Features
◼︎Excellent reception performance
◼︎Multi-channel parallel operation
◼︎Multi-mode scanning with ITU compliance
◼︎Signal demodulation supporting multiple modulation patterns
◼︎Computer video leak detection and restoration
| Model | 3943B |
| Frequency Range | 9kHz~8GHz |
| Maximum linear operating input level | -13dBm, 9kHz~30MHz +3dBm, 20MHz~3.6GHz (low distortion mode) -24dBm, 20MHz~3.6GHz (low noise mode) -24dBm,3.6GHz~8GHz |
| RF input port voltage standing wave ratio | <2.5, 9kHz~5.8GHz <4.0, 5.8GHz~8GHz |
| Display average noise level (spectral channel) | ≤ -125dBm,9kHz~100kHz ≤ -151dBm,100kHz~1MHz ≤ -155dBm,1MHz~20MHz ≤ -154dBm, 20MHz~80MHz (low noise mode) ≤ -160dBm, 80MHz~1.5GHz (low noise mode) ≤ -155dBm, 1.5GHz~3.6GHz (low noise mode) ≤ -128dBm, 20MHz~3.6GHz (low distortion mode) ≤ -158dBm,3.6GHz~5.8GHz ≤ -154dBm,5.8GHz~7.5GHz ≤ -151dBm,7.5GHz~8GHz |
Phase noise | Carrier 21MHz <-115dBc/Hz, 10kHz frequency offset <-117dBc/Hz, 100kHz frequency offset Carrier 500MHz, <-95dBc/Hz, 10kHz frequency offset <-95dBc/Hz, 100kHz frequency offset Carrier 3.4GHz, <-92dBc/Hz, 10kHz frequency offset <-92dBc/Hz, 100kHz frequency offset |
For more detailed information, please download the PDF Datasheet above.
The overall size of the handheld monitoring receiver is 182.5mm×289mm×69mm, the weight of the whole machine is less than 3.5kg, the working time is 3-4h with battery, the display is 10.1-inch TFT, and the integrated touch screen. With multiple functions such as radio signal search, interception, measurement, analysis, demodulation, direction finding, positioning, etc., it can be used to perform emission monitoring, coverage measurement, illegal emission source/interference source rapid detection and positioning, and major activities that comply with ITU specifications Radio security and other tasks. The whole machine adopts a full touch screen design, and the software supports multi-touch interactive mode. The touch operation experience of the smart phone is completely transplanted to the monitoring receiver device. The users can conveniently complete the display trajectory zoom in, zoom out, window movement, parameter setting and other operations through touch gestures, providing a user-friendly UI interface to the greatest extent, so that the user can operate the monitoring receiver just like using a mobile phone or a pad computer.
For more detailed information, please download the PDF Datasheet above.
