EMC Comprehensive Tester

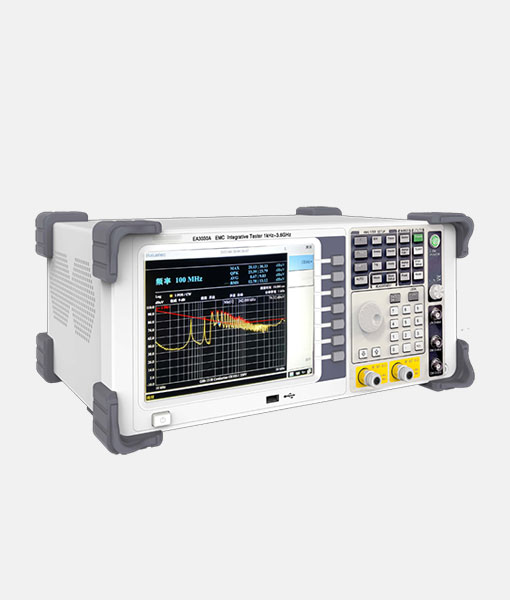

The EA3030A comprehensive tester is a compact electromagnetic compatibility testing and diagnostic device that integrates various instrument functions such as EMI receiver, spectrum analyzer, network analyzer, filter design simulation, Line impedance stabilization network (LISN), and CM/DM separation device. With the help of a comprehensive measuring instrument, users can detect conducted and radiated interference in the early stage, locate the interference source, and determine the interference component; By designing a filter to filter out interference signals, and then conducting standard template testing on a comprehensive tester, it is verified whether the improved results meet the requirements, thereby saving product development cycle and shortening certification time.

Key Features

◼︎Frequency range: 1kHz~3.6GHz

◼︎Resolution bandwidth: 1Hz~3MHz (-3dB), 200Hz/9kHz/120kHz/1MHz (-6dB)

◼︎Complies with CISPR 16-1-1-1 standards, including CISPR AVG, CISPR RMS, QPK detectors

◼︎Embedded multiple EMC testing standards (GB/GJB/EN/CISPR/FCC), supporting custom standards
