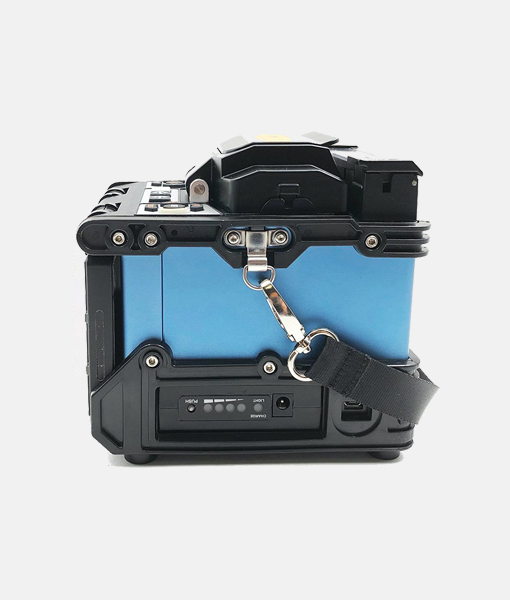

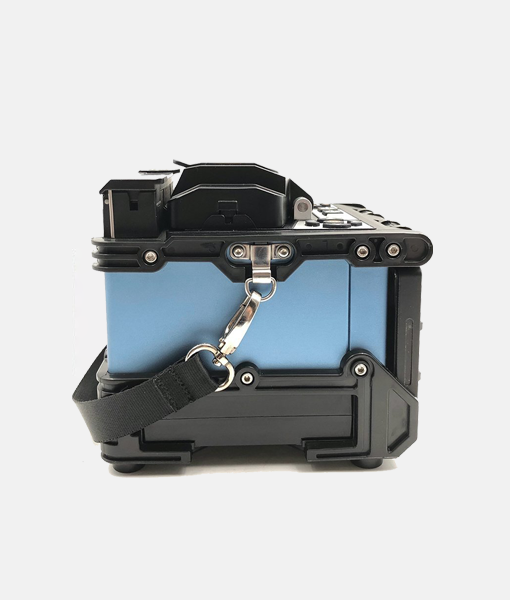

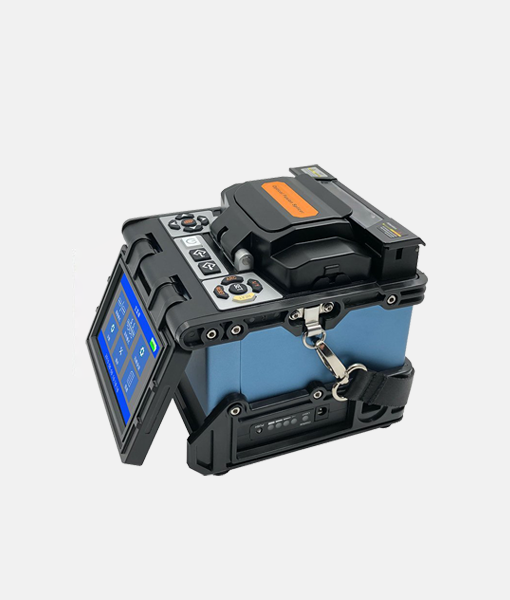

With smart appearance, reliable quality, this Fusion Splicer is a new and special design for installation, operation and maintenance of optical fiber specially design a precision, durable, convenient optical fiber construction instrument. Widely used in the construction, inspection, maintenance of fiber cable.
Key Feature
◼︎ Core to core alignment by PAS technology
◼︎ 9 sec splicing time and 30 sec heat time
◼︎ Built in 5200 mAh capacity Li battery of 300 splicing and heating
◼︎ 300 X or Y view, 150 X and Y view
◼︎ Large amplification and clear core
| Splicing Type | SM, MM, DS, NZDS |
| Splicing Loss | 0.02dB(SM), 0.01dB(MM), 0.04dB(DS), 0.04dB(NZDS) |
| Return Loss | >60dB |
| Splicing Mode | Manual, Half Auto, Auto |
| Fiber Alignment | Core to Core Alignment by PAS technology |
| Applicable Fiber | Wire Cable and 0.25mm,0.9mm fiber, SC connector(optional) |
| Splicing Time | ≤9s |
| Heat Time | ≤30s |
For more detailed information, please download the PDF Datasheet above.
With smart appearance, reliable quality, this Fusion Splicer is a new and special design for installation, operation and maintenance of optical fiber specially design a precision, durable, convenient optical fiber construction instrument. Widely used in the construction, inspection, maintenance of fiber cable.
For more detailed information, please download the PDF Datasheet above.
