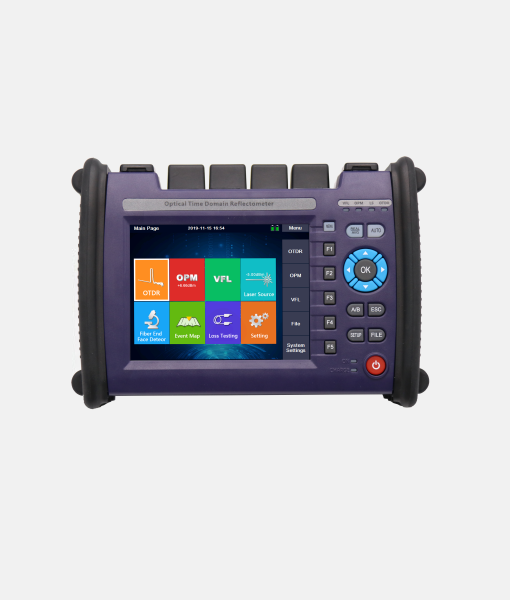

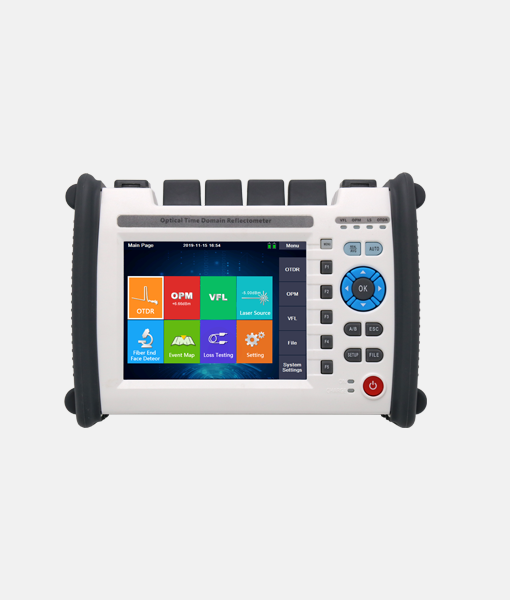

TF2102 PON OTDR offers a seamless user experience with integrated touch screen and keys. It excels in short-range measurement with a dead zone of 1/5m for single mode and 2.5/8m for multi-mode. With a maximum sampling resolution of 5cm, it supports comprehensive analysis functions such as segment return loss, event point return loss, multi-curves comparison, and quick screenshots. Additionally, it features a complete user data interface, including USB (Type A), MINI USB, and SD card slots.
Key Features
◼︎ 5.6 Inch LCD
◼︎ 7 Functional Modules
◼︎ 42dB/250km
◼︎ 5 Wavelength
◼︎ 1m/5m
| Model | Single Mode | Multi Mod |
| Wavelength(max:5λ) | 1310/1490/1550/1610/1625/1650nm(Optional) | 850/1300nm |
| Dynamic Range | 26~42dB | 22/26dB |
| Dead Zone | 1/5m | 2.5/8m |
| Min. sampling resolution | 5cm | |
For more detailed information, please download the PDF Datasheet above.
TF2102 PON OTDR offers a seamless user experience with integrated touch screen and keys. It excels in short-range measurement with a dead zone of 1/5m for single mode and 2.5/8m for multi-mode. With a maximum sampling resolution of 5cm, it supports comprehensive analysis functions such as segment return loss, event point return loss, multi-curves comparison, and quick screenshots. Additionally, it features a complete user data interface, including USB (Type A), MINI USB, and SD card slots.
For more detailed information, please download the PDF Datasheet above.
