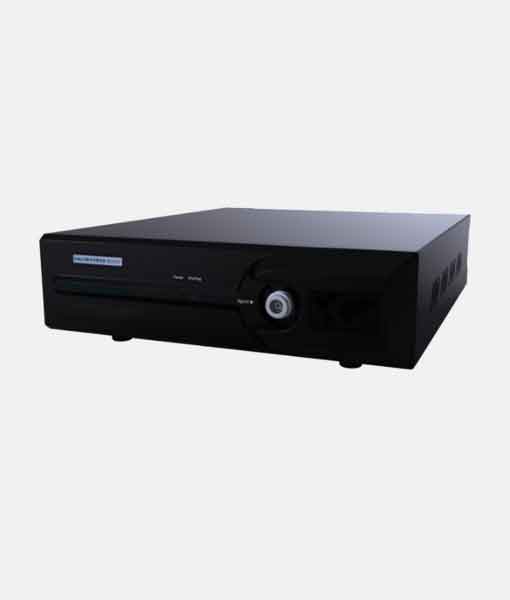

The GMXS8110 portable simulator is a single frequency point simulation source for global satellite navigation systems, launched for applications such as research and development, testing, and repeated testing in production enterprises.
The GMXS8110 portable simulator provides satellite navigation signal simulation for global satellite navigation systems, supporting signal simulation output at any frequency point of BDS/GPS/GLONASS/Galileo. It has the ability to simulate satellite navigation signals for BDS constellations (36 RNSS), GPS constellations (32), GLONASS constellations (24), Galileo constellations (24), and provides high stability standard 1PPS pulse signals and 10MHz clock signal output, It can meet the application needs of various user terminal devices, such as design and development, production testing, teaching demonstrations, and routine inspections.
Key Features
◼︎Constellation Simulation
◼︎Trajectory Simulation
◼︎Environmental Simulation
◼︎Simulation Control
◼︎Single Frequency Point Output
Frequency | |
Type | Choose one frequency point from GPS, GLONASS, Galileo, and BDS |
Signal Scale | |
Number of channels | 12 channels per frequency point |
Multipath quantity | 1-4 channels per frequency point (multiplexing) |
Signa | |
Phase noise | -75dBc/Hz (100 Hz) -80dBc/Hz (1kHz) -85dBc/Hz (10kHz) -90dBc/Hz (100kHz) |
Harmonic power (Max) | -35dBc |
Clutter power (Max) | -40dB |
Signal Powe | |
Power range | -150dBm~-60dBm |
Power resolution | better than 0.2d |
Power accuracy | better than 0.7dB |
External Interface | |
Reference 1PPS pulse signal (BNC) | 1 input and 1 output |
Reference 10MHz clock signal (BNC) | 1 input and 1 output |
RF output port (N) | 1 |
For more detailed information, please download the PDF Datasheet above.
The GMXS8110 portable simulator is a single frequency point simulation source for global satellite navigation systems, launched for applications such as research and development, testing, and repeated testing in production enterprises.
The GMXS8110 portable simulator provides satellite navigation signal simulation for global satellite navigation systems, supporting signal simulation output at any frequency point of BDS/GPS/GLONASS/Galileo. It has the ability to simulate satellite navigation signals for BDS constellations (36 RNSS), GPS constellations (32), GLONASS constellations (24), Galileo constellations (24), and provides high stability standard 1PPS pulse signals and 10MHz clock signal output, It can meet the application needs of various user terminal devices, such as design and development, production testing, teaching demonstrations, and routine inspections.
For more detailed information, please download the PDF Datasheet above.
