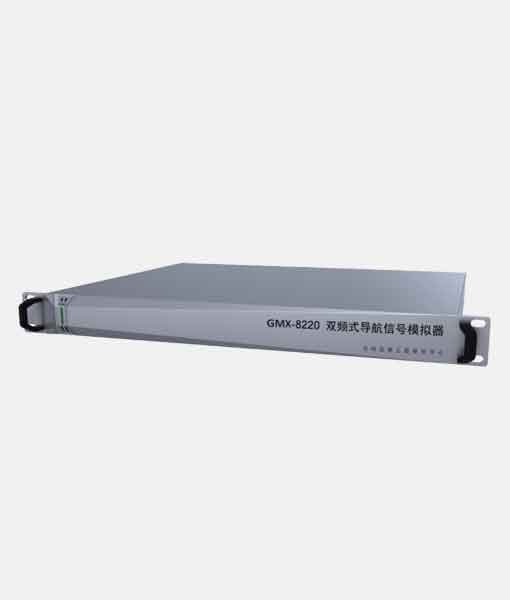

The GMX8220 dual frequency navigation signal simulator provides satellite navigation signal simulation for global satellite navigation systems. Each frequency point can generate 12 satellite signals, supporting signal simulation outputs composed of any two frequency points in BD / GPS / GLONASS. It provides high stability standard 1PPS pulse signals and 10MHz clock signal outputs, which can meet the design, development, production testing, teaching demonstrations of various user dual frequency terminal devices Routine testing and other application requirements.
Key Features
◼︎Constellation Simulation
◼︎Trajectory Simulation
◼︎Environmental Simulation
◼︎Simulation Control
◼︎Single Frequency Point Output
Frequency | |
| Type | B1/L1 |
Signal Scale | |
| Number of channels | 12 channels per frequency point |
| Multipath quantity | 1-4 channels per frequency point (multiplexing) |
Signa | |
| Phase noise | -75dBc/Hz (100 Hz) -80dBc/Hz (1kHz) -85dBc/Hz (10kHz) -90dBc/Hz (100kHz) |
| Harmonic power (Max) | -35dB |
| Clutter power (Max) | -40dBc |
Signal Powe | |
| Power range | -150dBm~-60dBm |
| Power resolution | better than 0.2dB |
| Power accuracy | better than 0.7dB |
External Interface | |
| Reference 1PPS pulse signal (BNC) | 1 input and 1 output |
| Reference 10MHz clock signal (BNC) | 1 input and 1 output |
| RF output port (N) | 1 input and 1 output |
For more detailed information, please download the PDF Datasheet above.
The GMX8220 dual frequency navigation signal simulator provides satellite navigation signal simulation for global satellite navigation systems. Each frequency point can generate 12 satellite signals, supporting signal simulation outputs composed of any two frequency points in BD / GPS / GLONASS. It provides high stability standard 1PPS pulse signals and 10MHz clock signal outputs, which can meet the design, development, production testing, teaching demonstrations of various user dual frequency terminal devices Routine testing and other application requirements.
For more detailed information, please download the PDF Datasheet above.
