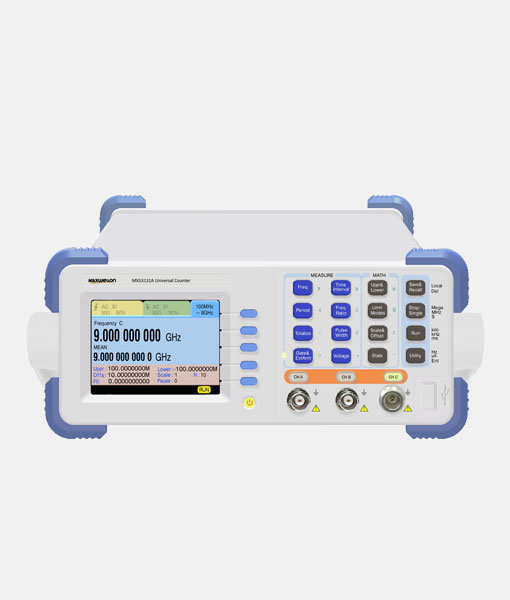

MX53131A high-precision universal counter is a high-precision frequency and time measuring instrument newly developed by Maxwellon. They are based on high-performance AVR microcontrollers for functional control, measurement timing control, data processing, and result display. Using reciprocal counting technology and digital interpolation technology to achieve high-precision measurement across the entire range. In addition to measurement functions such as frequency, period, time interval, pulse width, duty cycle, phase, count, etc., there are also measurement and operation functions for multiple averages, maximum values, minimum values, standard deviation, Allen variance, maximum deviation (maximum minus minimum value), single deviation (minus preset value), and PPM.
Key Features
◼︎Operates at 80MHz clock frequency.
◼︎Frequency measurement resolution is 10 digits per second.
◼︎Timing resolution for measurements is 100ps.
◼︎Channels A and B support frequencies up to 225MHz.
| Frequency Measurement | |
| Channel A Range | 0.001Hz to 225MHz |
| Channel B Range | 0.001Hz to 225MH |
| Channel BU Range | 100MHz to 1.5GHz |
| Channel C Ranges | Option I: 100MHz to 500MHz Option II: 100MHz to 1.5GHz Option III: 100MHz to 2.5GHz Option IV: 100MHz to 3GHz Option V: 100MHz to 6GHz Option VI: 1.5GHz to 9GHz |
| Display Least Significant Digit (LSD) | (100ps×Frequency of the measured signal)/Gate Time |
| Gate Time | 1ms to 500s (Selectable |
| Measurement Error | ±( 100ps/Gate Time +Timebase Error+Trigger Error)×Frequency of the measured signal |
For more detailed information, please download the PDF Datasheet above.
