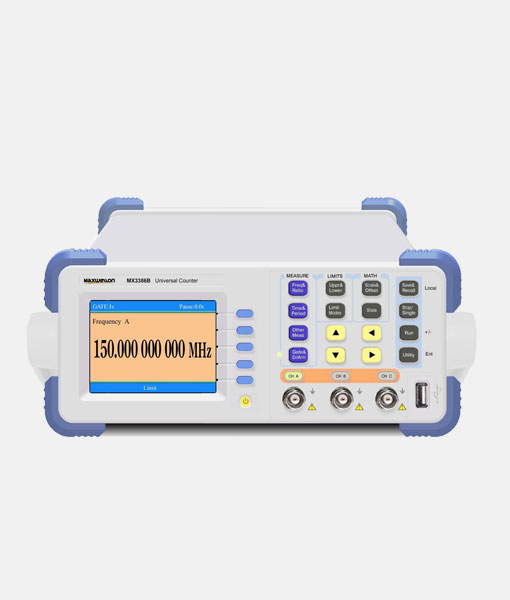

MX3386B series high-precision universal counter is a newly developed instrument by Maxwellon for accurate frequency and time measurements. Powered by a high-performance AVR microcontroller, it manages function control, measurement timing, data processing, and result display. Employing reciprocal counting technology, it achieves consistent precision across the entire measurement range.
Key Features
◼︎150MHz clock frequency, 9 digits/s and time resolution of 7 ns.
◼︎Up to 9GHz.
◼︎High-performance AVR microcontrollers
◼︎Includes mathematical operation capabilities
Frequency Measurement | |
| Channel A Range | 0.14mHz to 150MH |
| Channel BU Range (Option VI) | 100MHz to 1.5GHz |
| Channel C Ranges | Option I: 100MHz to 500MHz Option II: 100MHz to 1.5GHz Option III: 100MHz to 2.5GHz Option IV: 100MHz to 3GHz Option V: 100MHz to 6GHz Option VI: 1.5GHz to 9GHz |
| Display Least Significant Digit (LSD) | (tres×Frequency of the measured signal)/Gate Time; tres= 7×10-9 s |
| Gate Time | 0μs,100μs,1ms,10ms,100ms,300ms,1s,10s,100s, 1000s,External gate optional |
| Measurement Error | ±( LSD/Frequency of the measured signal +Timebase Error+Trigger Error) |
For more detailed information, please download the PDF Datasheet above.
MX3386B series high-precision universal counter is a newly developed instrument by Maxwellon for accurate frequency and time measurements. Powered by a high-performance AVR microcontroller, it manages function control, measurement timing, data processing, and result display. Employing reciprocal counting technology, it achieves consistent precision across the entire measurement range.
For more detailed information, please download the PDF Datasheet above.
