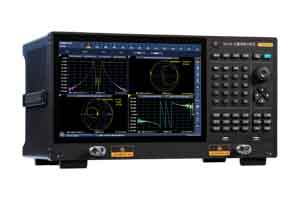

3657 Vector Network Analyzer

3657 series vector network analyzer is suitable for wireless communication, cable TV, education, and automotive electronics, and can be used for performance measurement of RF components such as filters, amplifiers, antennas, cables, cable TV taps, etc. This product adopts the Windows operating system; Equipped with error calibration function, time-domain function, fixture simulator function, automatic fixture removal function, and advanced time-domain analysis function; It has various display formats such as logarithmic amplitude, linear amplitude, impedance, standing wave, phase, group delay, Smith circle diagram, polar coordinates, etc; Capable of displaying multiple channels and windows; Equipped with USB interface, LAN interface, HDMI interface, and DP interface. It can quickly and accurately measure the amplitude, phase, and group delay characteristics of the S parameter of the tested object, and has efficient and powerful error correction ability.

Key Features

◼︎Frequency range from 100kHz to 4.5GHz and 100kHz to 9GHz

◼︎140dB wide dynamic range, accurate measurement on high rejection ratio devices

◼︎Ultra-low trace noise which provide higher test accuracy

◼︎Time domain analysis function as the standard configuration

◼︎Fixture simulator can simulate various R&D situations to rapidly get the real-time test results

◼︎LAN and GPIB interface, capable of remote control and system interconnection, 4 USB interfaces
