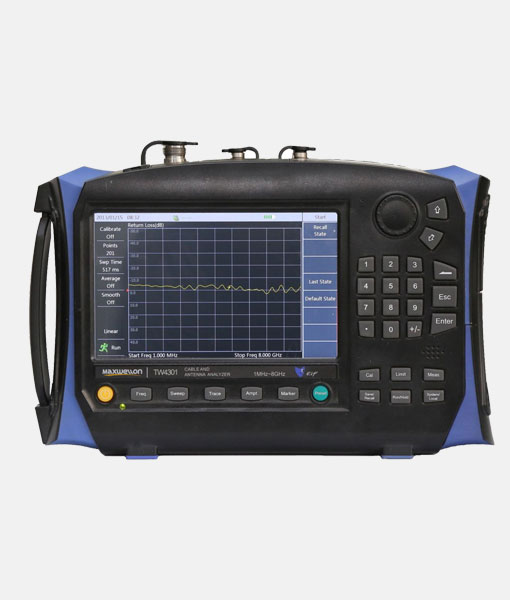

TW4301 Cable & Antenna Analyzer

Maxwellon TW4301 series Cable & Antenna Analyzer adopted techniques of hybrid integration design of RF circuit and digital circuit, wideband fundamental-wave mixing, digital IF processing, intelligent power management; It has advantages of high-speed, high-accuracy, compact, lightweight, battery-powered, touch screen operation, automatic adjustment of backlight brightness. It supports to test VSWR, return loss, characteristic impedance, and phase, it can precisely locate the fault points as well.

Maxwellon TW4301 series Cable & Antenna Analyzer is developed for on-site test, which is mainly used for the test of cable & antenna system in various communication base stations, include trunking, GSM, PCS/DCS, CDMA, GPRS, WCDMA, CDMA2000, TD-SCDMA, LTE and paging system.

Key Features

◼︎Frequency range from 1 MHz to 4GHz/8GHz, high speed, high accuracy

◼︎Build-in E-cal kit, easier and faster

◼︎PC software available, easy data management

◼︎Build-in GPS reciever

◼︎7-inch bright LCD touch screen

◼︎Return Loss, VSWR, Cable Loss, DTF, DTF VSWR, Smith Chart, 1-Port Phase, Power Measuremen
