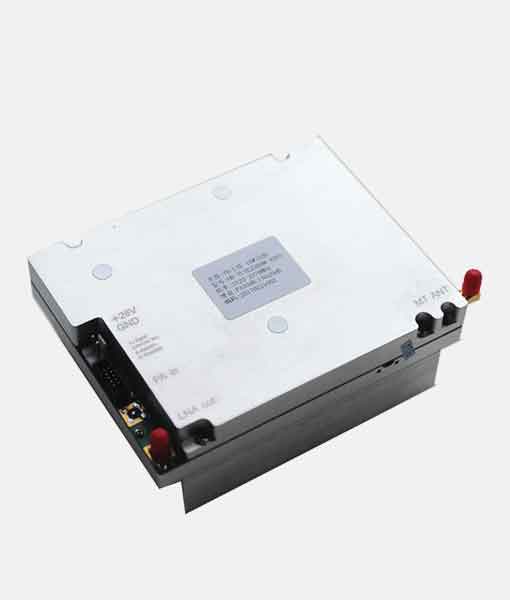

Station Amplifier (Built-in Duplexer)

The MXPA base station bidirectional amplifier is composed of high-linear power amplifiers, low-noise amplifiers, duplexers, microwave circulators, switch power supplies, and attenuators. In the uplink process, the wireless signal from the mobile station is received by the antenna, amplified by the low-noise amplifier through the ANT port and the bidirectional amplifier’s duplexer 2. It is then transmitted through duplexer 1 to the BTS port of the bidirectional amplifier and sent to the base station. In the downlink process, the signal transmitted by the base station passes through the BTS port of the bidirectional amplifier to duplexer 1, is then amplified by the high-linear power amplifier. The amplified high-power signal passes through duplexer 2 and is ultimately sent to the transmitting antenna to cover the desired radio wave area for reception by the mobile station.

Key Features

◼︎Built-in Duplexer

◼︎High-Power Imported Tubes

◼︎Independent Power Amplification for Each Carrier Frequency

◼︎Automatic Bypass Function

◼︎Micro-D 15-Pin Connector
