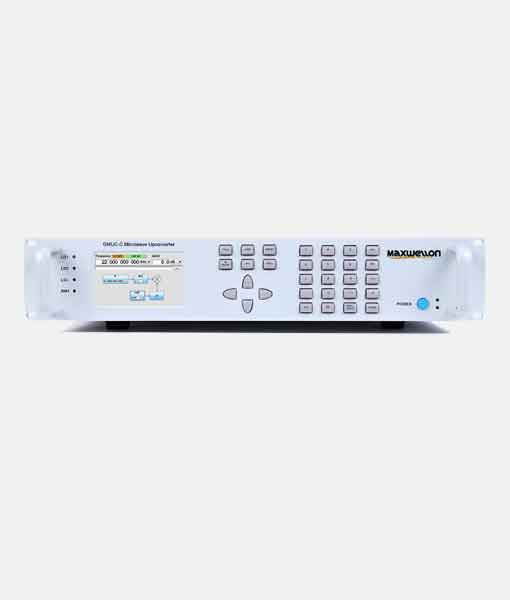

GMUC-C Series Microwave Upconverter is a broadband frequency converter that is dedicated for satellite communication. It has a high performance, high reliability and an octave covered by RF signal. Its frequency step is precise and accurate to 1Hz with a variety of IF and signal bandwidth choices. GMUC-C series is equipped with functions like self-testing and combination alarm which is suitable for long-time uninterrupted use, guaranteed safety and reliability.
GMUC-C series microwave upconverter is mainly designed for satellite communication system, signal monitoring system, and electronic countermeasure system with an excellent phase noise, clutter suppression, and in-band flatness data. It is able to provide a transparent RF transmission channel to all videos or data communications. All programming commands can be set through a local panel or through network remotely. GMUC-C series microwave upconverter has a standard 2U size.
Applications: T&M Systems/Satellite Communications/MIMO
Key Features
◼︎Octave RF coverage (S, C, X, Ku, and Ka)
◼︎ 2GHz or above instantaneous signal bandwidth
◼︎ Amplitude Equalization and Group Delay
◼︎ Variety of commonly used IF and bandwidth combinations
◼︎ Excellent phase noise specification (40GHz): ≤-100dBc/Hz@10KHz
◼︎ Internal and external reference switching
◼︎ Remote programming
◼︎Self-testing and combination alarm
| Output Characteristics | |
Input Frequency Range | GMUC0204C: 2 to 4GHz GMUC0408C: 4 to 8GHz GMUC0818C: 8 to 18GHz GMUC1826C: 18 to 26.5GHz GMUC2640C: 26.5 to 40GHz GMUC1840C: 18 to 40GHz |
Frequency Tuning Step Size | 1Hz |
IM3 Output | ≤-36dBc (△5MHz, Maximum Gain, Power Output: 2*0dBm) |
Output VSWR | ≤1.4(GMUC0204C, GMUC0408C) ≤1.5(GMUC0818C, GMUC1826C, GMUC2640C) ≤2.2(GMUC1840C) |
Output Impedance | 50Ω |
RF Signal Monitoring | -20dBc (typ.) |
Input Characteristics | |
Input Frequency | 70±20MHz,140±40MHz,0.72±0.25GHz,1.2±0.25GHz,1.2±0.5GHz,1.8±1GHz (select between single or multiple IF outputs) |
Maximum Power Input | +10dBm (Operating) |
Input VSWR | ≤1.4 |
| Input Impedance | 50Ω |
For more detailed information, please download the PDF Datasheet above.
GMUC-C Series Microwave Upconverter is a broadband frequency converter that is dedicated for satellite communication. It has a high performance, high reliability and an octave covered by RF signal. Its frequency step is precise and accurate to 1Hz with a variety of IF and signal bandwidth choices. GMUC-C series is equipped with functions like self-testing and combination alarm which is suitable for long-time uninterrupted use, guaranteed safety and reliability.
GMUC-C series microwave upconverter is mainly designed for satellite communication system, signal monitoring system, and electronic countermeasure system with an excellent phase noise, clutter suppression, and in-band flatness data. It is able to provide a transparent RF transmission channel to all videos or data communications. All programming commands can be set through a local panel or through network remotely. GMUC-C series microwave upconverter has a standard 2U size.
Applications: T&M Systems/Satellite Communications/MIMO
For more detailed information, please download the PDF Datasheet above.
