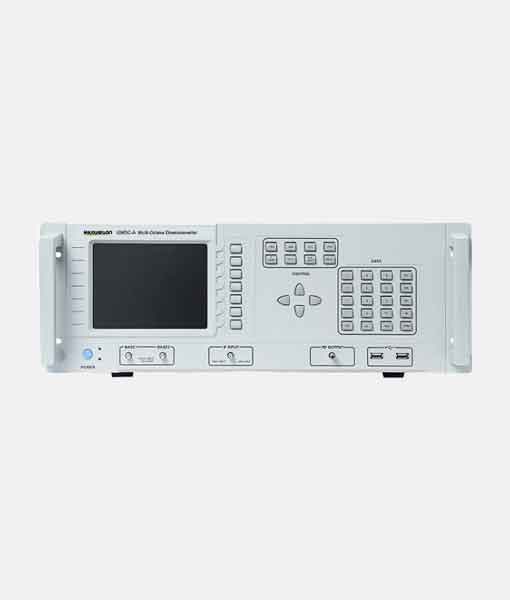

GMDC-A Series Multi-Octave Downconverter belongs to our microwave downconverter series that has a high performance and an octave overage by RF signal. Its frequency step is precise and accurate to 10Hz with a variety of IF and signal bandwidth choices.
This series of converter is mainly used for electronic countermeasure system, radar system, and satellite communication system. Its excellent phase noise, clutter suppression, and in-band flatness data can provide a transparent RF transmission channel to all videos or data communications. All programming commands can be set through a local panel or through network remotely. GMDC-A series microwave downconverter is available in 2U/4U sizes.
Applications: T&M Systems/Satellite Communications/MIMO
Key Features
◼︎Multi-octave RF coverage (0.5 - 67GHz)
◼︎4GHz or above instantaneous signal bandwidth
◼︎Amplitude Equalization and Group Delay Equalization
◼︎Variety of commonly used IF and bandwidth combinations
◼︎Excellent phase noise specification (67GHz): ≤-100dBc/Hz@10kHz
◼︎Internal and external reference switching
◼︎Remote programming
Input Characteristics | |
Input Frequency Range | GMDC20A: 0.5 to 20GHz GMDC26A: 0.5 to 26GHz GMDC40A: 0.5 to 40GHz GMDC50A: 0.5 to 50GHz GMDC67A: 0.5 to 67GH |
Frequency Tuning Step Size | 10Hz |
Maximum Input of Signal Power | -30dBm(operating), +10dBm(damaged) (+5dBm operating, ATT35 support |
Input LO Leakage | ≤-80dBm |
Input VSWR | ≤2.5 |
Input Impedance | 50Ω |
Output Characteristics | |
Output Frequency | 70±20MHz,140±40MHz,0.72±0.25GHz,1.2±0.25GHz, 1.2±0.5GHz,1.8±1GHz, 3±2GHz (select between single or multiple IF outputs) |
P-1 Output Power | ≥ +13dBm |
IM3 Output | ≤-60dBc (△5MHz, Maximum gain, Power output:2*-10dBm) |
Output VSWR | ≤1.4 |
Output Impedance | 50Ω |
For more detailed information, please download the PDF Datasheet above.
