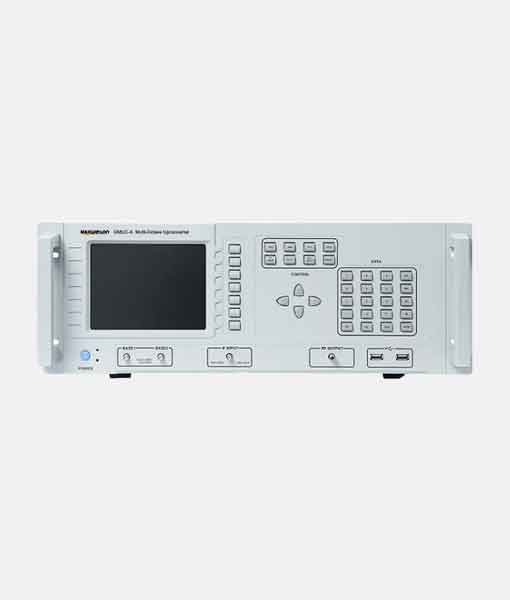

GMUC-A is a high-performance microwave upconverter series with a wide range of RF signal coverage that spans multiple frequency ranges. It offers precise frequency stepping down to 10Hz and provides various intermediate frequency (IF) and signal bandwidth options. This series of upconverters is primarily used in electronic warfare systems, radar systems, and other applications. It boasts excellent phase noise, spurious suppression, and in-band flatness, making it suitable for transparent RF transmission channels in all video or data communication scenarios. All control commands can be set either through the local panel or remotely via a network. The standard 2U/4U rack-mountable chassis ensures easy integration.
Applications: T&M Systems/Satellite Communications/MIMO
Key Features
◼︎Multi-octave RF coverage (0.5 - 67GHz)
◼︎4GHz or above instantaneous signal bandwidth
◼︎Amplitude Equalization and Group Delay Equalization
◼︎Variety of commonly used IF and bandwidth combinations
◼︎Excellent phase noise specification (67GHz): ≤-100dBc/Hz@10kHz
◼︎Internal and external reference switching
◼︎Remote programming
Output Characteristics | |
Frequency Range | GMUC20A: 0.5 to 20GHz GMUC26A: 0.5 to 26GHz GMUC40A: 0.5 to 40GHz GMUC50A: 0.5 to 50GHz GMUC67A: 0.5 to 67GHz |
P-1 Output Power | GMUC20A: ≥15dBm GMUC26A: ≥15dBm GMUC40A: ≥13dBm GMUC50A: ≥10dBm GMUC67A: ≥10dBm |
Input Characteristics | |
Input Frequency | 70±20MHz, 140±40MHz, 0.72±0.25GHz, 1.2±0.25GHz, 1.2±0.5GHz, 1.8±1GHz, 3±2GHz (select between single or multiple IF inputs) |
Maximum Power Input | +10dBm (Operating) |
Input VSWR | ≤1. |
Input Impedance | 50Ω |
For more detailed information, please download the PDF Datasheet above.
GMUC-A is a high-performance microwave upconverter series with a wide range of RF signal coverage that spans multiple frequency ranges. It offers precise frequency stepping down to 10Hz and provides various intermediate frequency (IF) and signal bandwidth options. This series of upconverters is primarily used in electronic warfare systems, radar systems, and other applications. It boasts excellent phase noise, spurious suppression, and in-band flatness, making it suitable for transparent RF transmission channels in all video or data communication scenarios. All control commands can be set either through the local panel or remotely via a network. The standard 2U/4U rack-mountable chassis ensures easy integration.
Applications: T&M Systems/Satellite Communications/MIMO
For more detailed information, please download the PDF Datasheet above.
