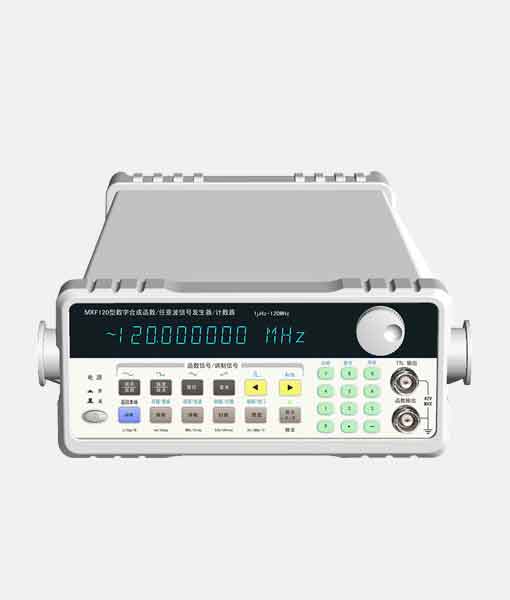

The instrument is a precision testing instrument that has the functions of outputting function signals,FM, AM, FSK, PSK, burst, frequency scanning, and other signals. In addition, this instrument also has the functions of frequency measurement, counting, and any wave generator. This instrument is an ideal testing equipment for electronic engineers, electronic laboratories, production lines, teaching, and scientific research
Key Features
◼︎Adopting Direct Digital Synthesis (DDS) technology.
◼︎The main waveform output frequency is 1 μHz~120MHz (MXF120).
◼︎The small signal output amplitude can reach 0.2mV.
◼︎ The pulse duty cycle resolution is as high as one thousandth.
◼︎Digital FM has high resolution and accuracy.
◼︎The burst mode has a continuous phase adjustment function.
Waveform Characteristics | ||
Main Waveform | Type | Sine wave, square wave, TTL wave(Square wave,TTL wave Max. output frequency ≤ 40MHz) |
Waveform amplitude resolution | 12 bits | |
Sampling rate | 200Msa/s (MXF80,MXF40,MXF20,MXF10,MXF05) 300Msa/s (MXF120) | |
Sine wave harmonic distortion | ≤ -50dBc (frequency ≤ 5MHz) ≤ -45dBc (frequency ≤ 10MHz) ≤ -40dBc (frequency ≤ 20MHz) ≤ -35dBc (frequency ≤ 40MHz) ≤ -30dBc (frequency>40MHz) | |
Sine wave distortion | ≤ 0.1% (frequency: 20Hz~100kHz) | |
Square wave rise and fall time | ≤25ns(MXF05,MXF10 ≤15ns(MXF20,MXF40,MXF80,MXF120) | |
Store Waveform | Type | 27 waveforms including sine wave, square wave, pulse wave, triangular wave, serrated wave, stepped wave, etc |
Waveform length | 4096 points | |
Waveform amplitude resolution | 10 bits | |
For more detailed information, please download the PDF Datasheet above.
