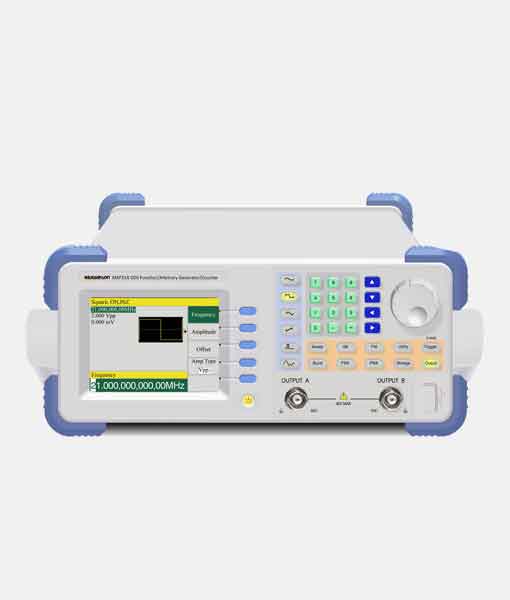

This instrument is a precision testing instrument that has the functions of outputting function signals, FM, AM, FSK, PSK, burst, frequency scanning, and other signals. In addition, this instrument also has the functions of frequency measurement and counting. This instrument is an ideal testing equipment for electronic engineers, electronic laboratories, production lines, teaching, and scientific research
Key Features
◼︎Adopting Direct Digital Synthesis (DDS) technology
◼︎Small signal output amplitude can reach 1mV
◼︎Pulse wave duty cycle resolution up to 0.001
◼︎Digital frequency modulation and amplitude modulation with high resolution and accuracy
◼︎Burst mode with continuous phase adjustment function
◼︎Frequency scanning output can be arbitrarily set for starting and ending frequencies
| Waveform Characteristics | ||
| Main Waveform | Type | Sine wave, square wave |
| Waveform amplitude resolution | 12 bits | |
| Sampling rate | 200Msa/s | |
| Sine wave harmonic distortion | ≤ -50dBc (frequency ≤ 5MHz) ≤ -45dBc (frequency ≤ 10MHz) ≤ -40dBc (frequency >10MHz) | |
| Sine wave distortion | ≤ 0.2% (frequency: 20Hz~100kHz) | |
| Square wave rise and fall time | ≤25ns(MXF06A ≤ 28ns) | |
| Store Waveform | Type | 26 types of waveforms, including sine wave, square wave, pulse wave, triangular wave, serrated wave, stepped wave, etc. TTL waveform (MXF21A/MXF31A only) |
| Waveform length | 4096 points | |
| Waveform amplitude resolution | 12 bits | |
For more detailed information, please download the PDF Datasheet above.
This instrument is a precision testing instrument that has the functions of outputting function signals, FM, AM, FSK, PSK, burst, frequency scanning, and other signals. In addition, this instrument also has the functions of frequency measurement and counting. This instrument is an ideal testing equipment for electronic engineers, electronic laboratories, production lines, teaching, and scientific research
For more detailed information, please download the PDF Datasheet above.
