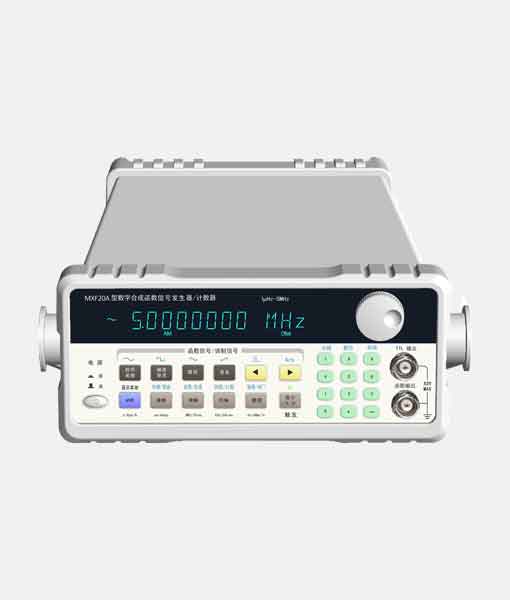

This instrument is a precision test instrument, with the function of output function signal, frequency modulation, amplitude modulation, FSK, PSK, burst, frequency sweep and other signals. In addition, this instrument also has the function of frequency measurement and counting. This instrument is an ideal test equipment for electronic engineers, electronic laboratories, production lines, teaching and scientific research.
Key Features
◼︎Direct Digital Compositing (DDS) is used.
◼︎The output frequency of the main waveform is 1μHz ~ 20MHz.
◼︎The output amplitude of small signal can reach 1mV.
◼︎The duty cycle resolution of the pulse wave is as high as 1/1000.
◼︎ Digital frequency modulation and amplitude modulation have high resolution and accuracy.
| Waveform Characteristics | ||
| Main Waveform | Type | Sine wave, square wave |
| Waveform amplitude resolution | 12 bits | |
| Sampling rate | 200Msa/s | |
| Sine wave harmonic distortion | ≤ -50dBc (frequency ≤ 5MHz) ≤ -45dBc (frequency ≤ 10MHz) ≤ -40dBc (frequency ≤ 20MHz) ≤ -35dBc (frequency ≤ 20MHz) | |
| Sine wave distortion | ≤ 0.2% (frequency: 20Hz~100kHz) | |
| Square wave rise and fall time | ≤25ns(MXF05A ≤ 28ns) | |
| Store Waveform | Type | 26 waveforms including sine wave, square wave, pulse wave, triangular wave, serrated wave, stepped wave, etc.TTL waveform (only MXF20A, output frequency is the same as the main waveform) |
| Waveform length | 4096 point | |
12 bits
| 12 bits | |
For more detailed information, please download the PDF Datasheet above.
This instrument is a precision test instrument, with the function of output function signal, frequency modulation, amplitude modulation, FSK, PSK, burst, frequency sweep and other signals. In addition, this instrument also has the function of frequency measurement and counting. This instrument is an ideal test equipment for electronic engineers, electronic laboratories, production lines, teaching and scientific research.
For more detailed information, please download the PDF Datasheet above.
