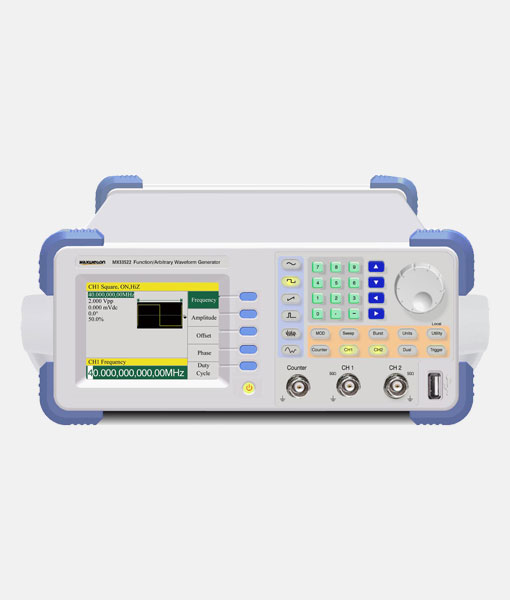

MX33522 Function/Arbitrary Wave Signal Generator is a signal generator that utilizes the latest unique digital filtering technology, capable of outputting high-precision, high stability, low distortion, and low jitter signal waveforms. It can be equipped with any waveform signal generation module. Help you accelerate development speed, improve product quality and reliability.
Key Features
◼︎low jitter output, with edge jitter ≤ 50ps rms
◼︎Embedded 400MSa/s arbitrary waveform generator
◼︎Accurate pulse waveform with adjustable edges
◼︎Sinusoidal waveform output 1 μ Hz~160MHz/128MHz/88MHz
◼︎Small signal amplitude can reach 1mVpp (50 Ω)
◼︎ All digital modulation
| Waveform Characteristics | |
| Output Waveform | Sine, Square, Ramp, Pulse, Noise, Arb, DC |
| Frequency error | ≤ ± 5 × 10-6 |
| Frequency stability | ± 1 × 10-6 |
For more detailed information, please download the PDF Datasheet above.
MX33522 Function/Arbitrary Wave Signal Generator is a signal generator that utilizes the latest unique digital filtering technology, capable of outputting high-precision, high stability, low distortion, and low jitter signal waveforms. It can be equipped with any waveform signal generation module. Help you accelerate development speed, improve product quality and reliability.
For more detailed information, please download the PDF Datasheet above.
