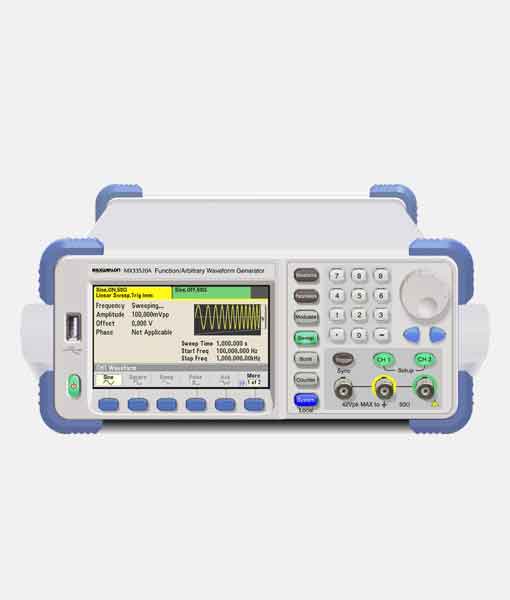

The MX33520A series function/Arbform generator is a signal generator that utilizes extended high-precision differential technology. Compared with previous DDS signal generators, it has excellent performance, fidelity, and flexibility. It can be equipped with any waveform signal generation module. Help you accelerate development speed, improve product quality and reliability.
Key Features
◼︎low distortion and low jitter output
◼︎200MSa/s sampling rate, 14bits vertical resolution, dual channel output
◼︎Total harmonic distortion as low as 0.05%
◼︎Large signal amplitude up to 20Vpp (High Z)
◼︎Small signal amplitude can reach 1mVpp (50 Ω), with excellent small signal quality
◼︎Double sideband suppressed carrier amplitude modulation (DSSC AM)
◼︎± 1ppm accuracy, with phase noise as low as -125 dBc/Hz (optional TCXO clock)
| Waveform | |
| Standard | Sine wave, square wave, Ramp wave, pulse wave, noise wave, Arb, DC |
| Built-in Arbform | More than 50 Arbforms, including exponential decline, exponential rise, Gaussian pulse, logarithm, etc |
| User defined Arbform | 8-16384 points |
| Sampling rate | 200MSa/s |
| Working Mode and Modulation Type | |
| Working Mode | Point Frequency, Modulation, Frequency Sweep, Burst, Frequency Counter, Frequency Sweeper, Power Meter |
| Modulation Type | ASK, FSK, BPSK, AM, DSSC AM, FM, PM, PWM |
For more detailed information, please download the PDF Datasheet above.
The MX33520A series function/Arbform generator is a signal generator that utilizes extended high-precision differential technology. Compared with previous DDS signal generators, it has excellent performance, fidelity, and flexibility. It can be equipped with any waveform signal generation module. Help you accelerate development speed, improve product quality and reliability.
For more detailed information, please download the PDF Datasheet above.
