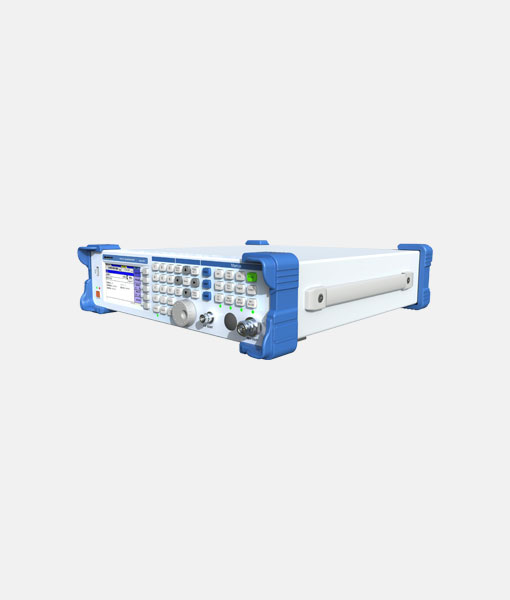

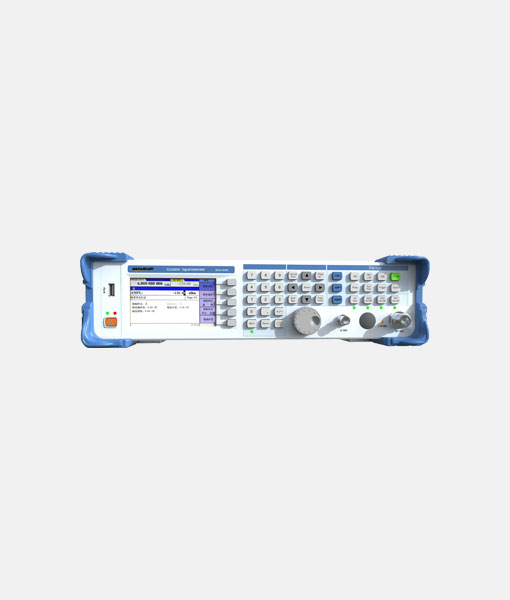

Maxwellon SG2060 series RF signal generator provides a wide range of product choices for different functional requirements and application scenarios, suitable for teaching, research, product development, production, and maintenance. Each type of product has outstanding features in its function to characterize the focus of its testing field. SG2060 series features a variety of key analog modulation functions, standard digital modulation functions, and customizable dedicated modulation methods. Rich logic hardware interface and widescreen LCD display make it easy to control various operations.
Key Features
◼︎ Frequency range from 9 kHz to 6 GHz
◼︎ Typical output power from -120dBm to +10dBm
◼︎ ASK/PSK/FSK, built-in IQ modulator (B type)
◼︎ AM/FM/ФM analog modulation functions
◼︎ Pulse modulation, minimum pulse width 200ns
Frequency Properties | ||
Frequency Range | 9kHz ~ 6GHz | |
Frequency Resolution | 0.23 Hz | |
Internal Reference Frequency | 10 MHz | |
Temperature Stability | ±1ppm (option: ±100ppb) | |
Internal Reference Output | 10 MHz, +2 dBm (typ.) | |
Spectral Purity | ||
Harmonic | < -35 dBc (typ.) | |
Non-Harmonic | < -60 dBc (typ.) | |
SSB Phase Noise | Carrier Frequency Offset @f=1GHz | ≤-98 dBc / Hz @ 10kHz offset |
| Sweep Properties | ||
Sweep Mode | Step Sweep, List Sweep | |
Sweep points | Step Sweep | 2 ~ 65535 |
List Sweep | 2 ~16383 | |
Dwell time | 5ms~50s | |
Trigger mode | Free/External | |
For more detailed information, please download the PDF Datasheet above.
Model
Model | Name | Description |
SG2060A | Multi-standard Signal Generator | 9 kHz to 6 GHz |
SG2060B | Multi-standard Signal Generator | 9 kHz to 6 GHz, built-in IQ modulator |
Standard
No. | Name | Description |
1 | Power Cord | Standard three core power cord |
2 | Product certificate |
Options
Option Model | Name |
BBG | Internal baseband data generation |
RFUC | RF upconversion device |
LFM | Linear frequency modulation function |
RMK | Rack Mount Kit |
AMK | Amplitude modulation option (SSB/DSB/CW) |
OCXO1 | High stability time base option |
PMC | Power meter control kit |
Notes:
1. This option can only be assembled and calibrated at the manufacturer's location
For more detailed information, please download the PDF Datasheet above.
