Maxwellon 1433 Series Handheld Signal Generator is designed for field testing. It has the functions of CW signal output, FM/AM/Pulse modulation, large dynamic range amplitude adjustment, step/list sweep, Unstable amplitude and unlock alarm function etc.

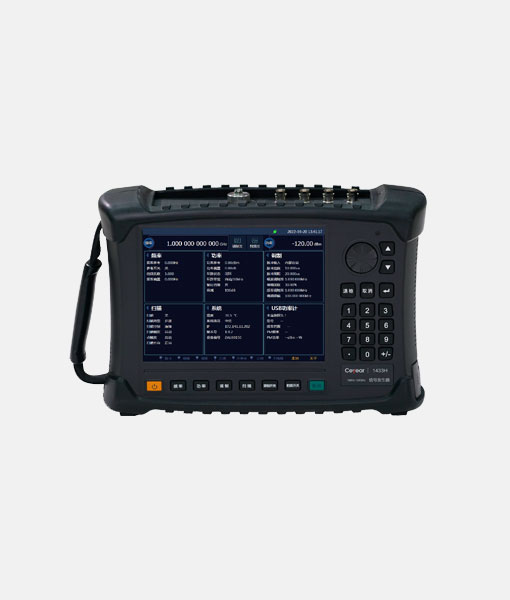

1433 Series Handheld Signal Generator has 8.4-inch large capacitive touch screen, with small size, flexible power supply and good working environment adaptability. It can be applied to the field installation, debugging and daily maintenance of fault diagnosis of electronic integrated system, receiver performance test, radar, communication, navigation and other equipment test.
Key Features
◼︎MHz to 20/26.5/40/50GHz
◼︎Higher frequency resolution: 0.1Hz
◼︎LAN and USB interface program control
◼︎8.4-inch LCD touch screen, multi-window display

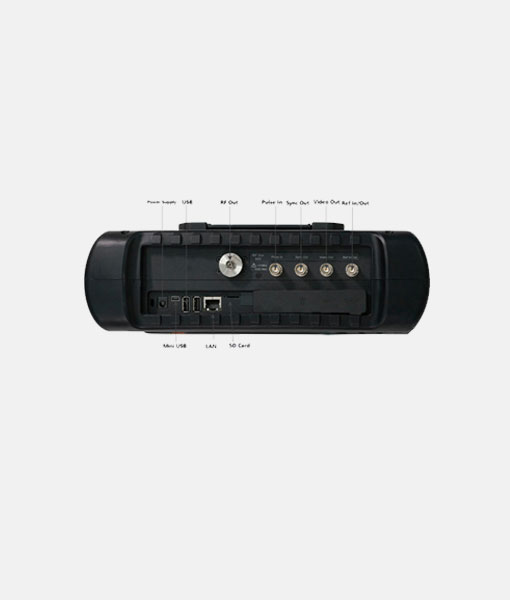

◼︎Various auxiliary test interfaces
Frequency Properties | |||
Frequency Range | 1433D: 1MHz to 20GHz, 1433E: 1MHz to 26.5GHz, 1433F: 1MHz to 40GHz, 1433H: 1MHz to 50GHz | Frequency | N (Internal YO harmonic number) |
1MHz≤f≤2.35GHz | 1/2 | ||
2.35GHz≤f≤2.5GHz | 1/8 | ||
2.5GHz≤f≤5GHz | 1/4 | ||
5GHz≤f≤10GHz | 1/2 | ||
10GHz≤f≤20GHz | 1 | ||
20GHz≤f≤40GHz | 2 | ||
40GHz≤f≤50GHz | 4 | ||
Frequency Resolution | 0.1Hz | ||
Initial Calibration Accuracy | ±0.5×10-6 | ||
Internal Timebase | Aging rate | ±0.5×10-6 /year | |
Temperature effects | ±0.3×10-6 (-10℃ to 50℃, versus 25℃±5℃） | ||
Reference Output | Frequency | 10MHz | |
Power | >0dBm to 50 Ω load | ||
Reference Input | Frequency | 10-100MHz, 1MHz step | |
Power | -5dBm to +10dBm, impedance: 50Ω | ||
For more detailed information, please download the PDF Datasheet above.

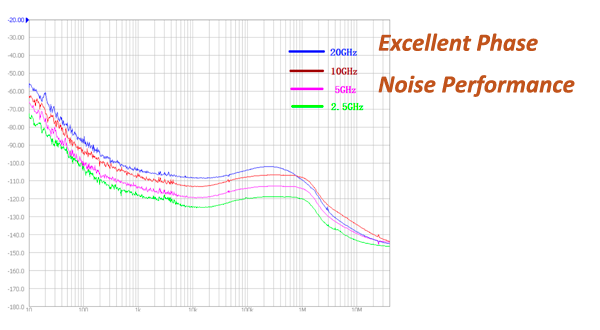

Excellent Phase Noise Performance SSB: -110dBc/Hz@10kHz frequency offset @10GHz carrier |
Convenient And Fast User Operation Experience

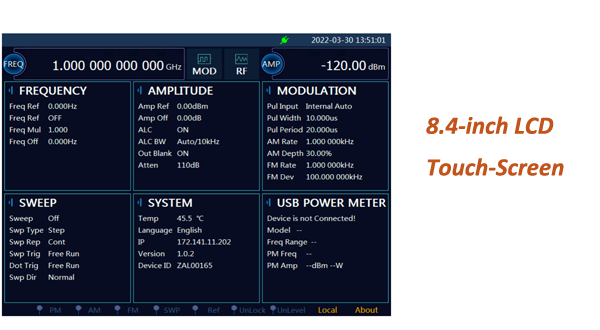

8.4-inch high-brightness LCD touch-screen
800×600 resolution, multi-window display
Model
Model | Name | Description |
1433D | Handheld Signal Generator | 1MHz to 20 GHz |
1433E | Handheld Signal Generator | 1MHz to 26.5 GHz |
1433 | Handheld Signal Generator | 1MHz to 40 GH |
1433H | Handheld Signal Generator | 1MHz to 50 GHz |
For more detailed information, please download the PDF Datasheet above.
