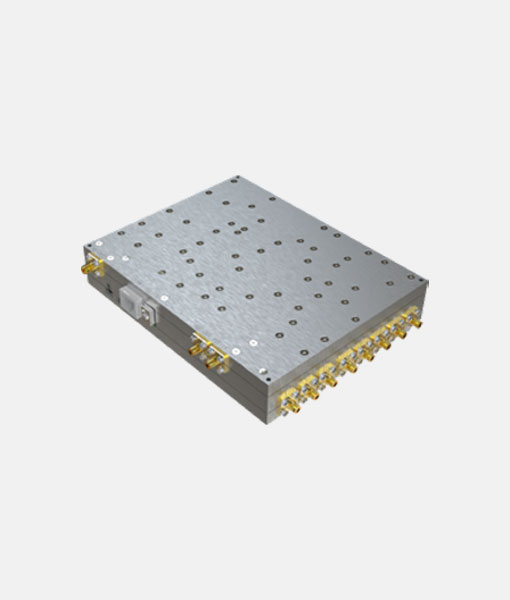

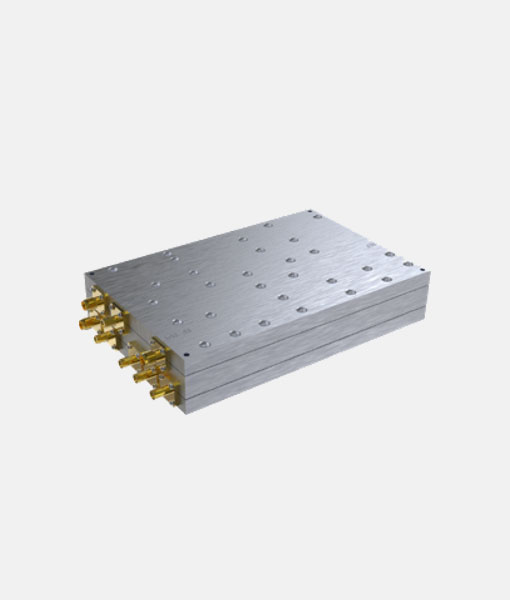

The MSG700 series signal generator module has rich functions and a flexible integrated volume. The module has multiple functions such as continuous wave signal, analog modulation, pulse modulation, digital modulation, amplitude/frequency sweep, linear frequency modulation, and upconversion, suitable for teaching and research, product development, and system integration.
Key Features
■ Frequency Range: 9kHz~3.0GHz/6.0GHz
■ Typical output power from -120dBm to +10dBm
■ Multiple digital modulation, built-in IQ modulator (B-type)
■ AM/FM/ФM analog modulation functions
■ Pulse modulation, minimum pulse width 100ns
Frequency Properties | ||
Frequency Range | MSG730A/B: 9kHz~3.0GHz | |
MSG760A/B: 9kHz~6.0GHz | ||
Frequency Resolution | 0.23Hz | |
Internal Reference Frequency | 10 MHz | |
Temperature Stability | ±1.0ppm | |
Internal Reference Output | 10 MHz, +2 dBm (typ.) | |
Spectral Purity | ||
Harmonic | MSG730: < -30 dBc (typ.) | |
MSG760: < -35 dBc (typ.) | ||
Non-Harmonic | MSG730: < -50 dBc (typ.) | |
MSG760: < -60 dBc (typ.) | ||
SSB Phase Noise | Carrier Frequency Offset @f=1GHz | MSG730: -93 dBc/Hz@10kHz offset |
MSG760: -98 dBc/Hz@10kHz offset | ||
For more detailed information, please download the PDF Datasheet above.
Model
Model | Name | Description |
MSG730A | Signal Generator Module | 9kHz~3.0GHz |
MSG730B | Signal Generator Module | 9kHz~3.0GHz, built-in IQ modulator |
MSG760A | Signal Generator Module | 9kHz~6.0GHz |
MSG760B | Signal Generator Module | 9kHz~6.0GHz, built-in IQ modulator |
Standard
No. | Name | Description |
| 1 | Power Cord | DC:+12V±5%/1.5A |
| 2 | Product certificate |
Options
Option Model | Name |
BBG | Internal baseband data generation |
BBW | Real time bandwidth options |
RFUC | RF upconversion device |
LFM | Linear frequency modulation function |
AMK | Amplitude modulation option (SSB/DSB/CW) |
For more detailed information, please download the PDF Datasheet above.
