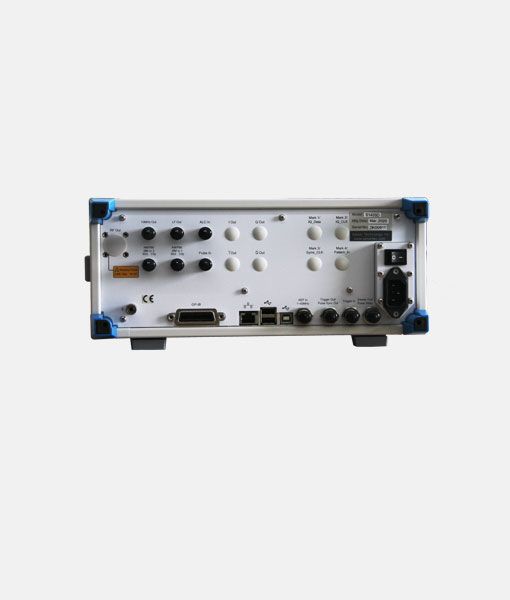

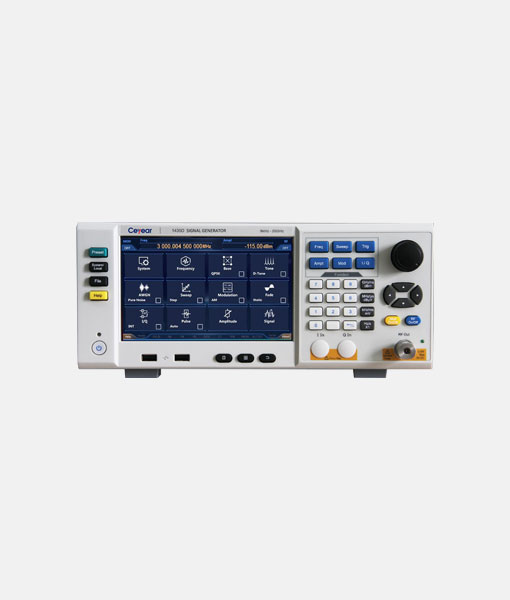

Based on innovative technologies, the 1435 series signal generator achieves balance in terms of performance, economy and volumetric weight. It also has excellent spectral purity, with a single side band (SSB) phase noise of -136dBc/Hz (when the carrier is 1GHz and the frequency offset is 10kHz) or -116dBc/Hz (when the carrier is 10GHz and the frequency offset is 10kHz).It provides a high power output and a large dynamic range, with the maximum output power up to 20dBm@20GHz and an output power dynamic range greater than 150dB. It responds fast and switches to another frequency in only 1ms, which shortens the test time and improves test efficiency, meeting the needs of massive data testing; in addition, it also has excellent analog modulation and pulse modulation functions.
Key Features
◼︎ Wide frequency coverage
◼︎ High output power
◼︎ Excellent SSB phase noise
◼︎ Extremely short frequency switching time
◼︎ High performance pulse modulation
Frequency Properties | |||
Frequency Range | 1435A:9kHz~3GHz 1435B:9kHz~6GHz 1435C:9kHz~12GHz 1435D:9kHz~20GHz 1435F:9kHz~40GHz | Frequency | N (Internal YO harmonic number) |
9kHz≤f<250MHz | 1/8 | ||
250MHz<f≤375MHz | 1/16 | ||
375MHz<f≤750MHz | 1/8 | ||
750MHz<f≤1.5GHz | 1/4 | ||
1.5GHz<f≤3GHz | 1/2 | ||
3GHz<f≤6GHz | 1 | ||
6GHz<f≤12GHz | 2 | ||
12GHz<f≤24GHz | 4 | ||
24GHz<f≤40GHz | 8 | ||
Frequency Resolution | 0.001Hz | ||
Frequency Switching Time | <1ms (typical value） | ||
Timebase Aging Rate | Standard: ±5×10-7/year (after continuous switch-on for 30 days) High Stability Time Base option H10: ±5×10-10 /day (after 30-day continuous power-on) | ||
Reference Output | Frequency | 10MHz | |
Power | >+4dBm to 50 Ω load | ||
Reference Input | Frequency | 1-50MHz, 1Hz step | |
Power | 0dBm~+7dBm, 50Ω impedance | ||
For more detailed information, please download the PDF Datasheet above.

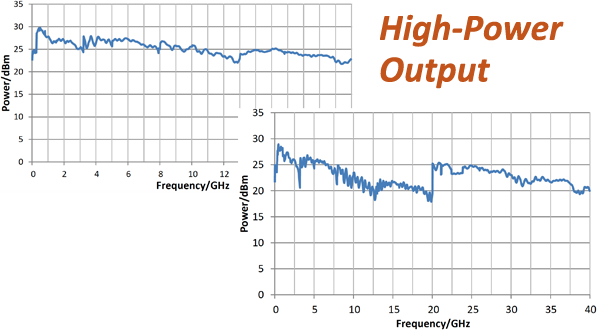

 High Output Powe Output Powe: above 20dBm |

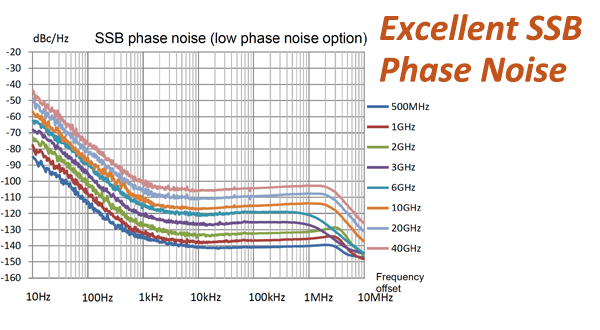

Excellent SSB Phase Noise
-101dBc/Hz (10GHz@10kHz, standard)
-116dBc/Hz (10GHz@10kHz, low phase noise option)
Model
Model | Name | Description |
1435A | Signal Generator | 9kHz~3GHz |
1435B | Signal Generator | 9kHz~6GHz |
1435C | Signal Generato | 9kHz~12GHz |
1435D | Signal Generato | 9kHz~20GHz |
1435F | Signal Generator | 9kHz~40GHz |
For more detailed information, please download the PDF Datasheet above.
