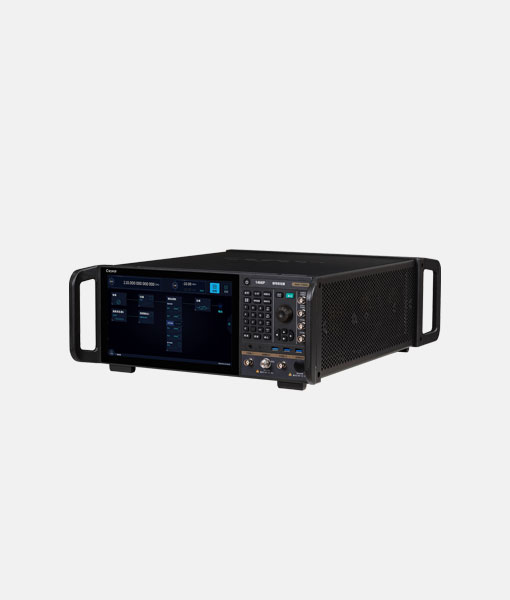

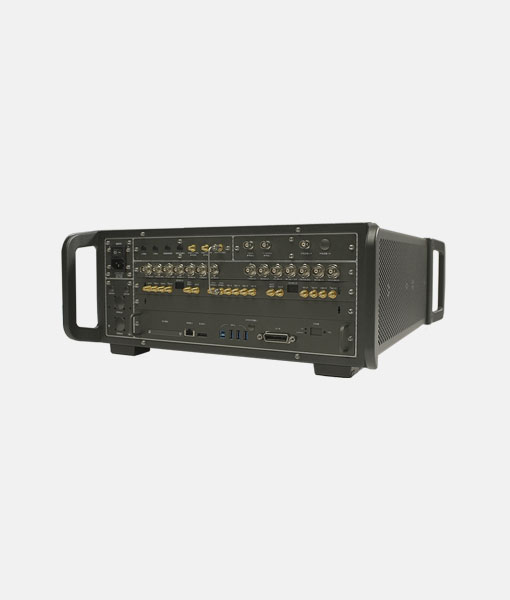

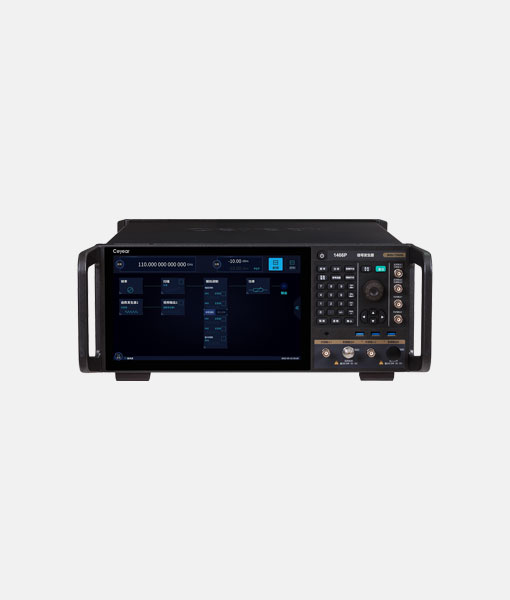

The Maxwellom 1466 series signal generator is a universal testing instrument for microwave and millimeter wave tip testing. It has a wide frequency range, high signal spectrum purity, high accuracy, and a large dynamic range of power output. Coupled with a single machine dual RF channel design, it can meet various testing requirements of users. The rich built-in functions such as analog sweep, analog modulation, and pulse modulation make testing more convenient. Newly upgraded human-computer interaction, featuring a series of new features such as large screen touch graphics guided interaction, mobile browser access control, multi manufacturer power meter connection recognition, multi client deployment, SCPI command recording, and control interface customization, creating a sense of user testing happiness.
Key Features
◼︎ 6kHz ~ 13GHz/20GHz/33GHz/45GHz/53GHz/67GHz/90GHz/110GHz
◼︎ SSB: -132 dBc/Hz (typical value, 10 GHz carrier 10kHz frequency offset)
◼︎ Output power: -150dBm~+25dBm (settable)
◼︎ AM, FM, ΦM and pulse modulation
◼︎ Step sweep, list sweep, power sweep, and analog sweep
Frequency Properties | |||
Frequency Range | 1466-C: 6kHz~13GHz 1466-D: 6kHz~20GHz 1466-E: 6kHz~33GHz 1466-G: 6kHz~45GHz 1466-H: 6kHz~53GHz 1466-L: 6kHz~67GHz 1466-N: 6kHz~90GHz 1466-P: 6kHz~110GHz | Frequency | N (Internal YO harmonic number) |
6kHz≤f≤10MHz | / | ||
10MHz<f≤50MHz | / | ||
50MHz<f≤62.5MHz | 1/256 | ||
62.5MHz<f≤125MHz | 1/128 | ||
125MHz<f≤250MHz | 1/64 | ||
250MHz<f≤500MHz | 1/32 | ||
500MHz<f≤1GHz | 1/16 | ||
1GHz<f≤2GHz | 1/8 | ||
2GHz<f≤4GHz | 1/4 | ||
4GHz<f≤8GHz | 1/2 | ||
8GHz<f≤20GHz | 1 | ||
20GHz<f≤40GHz | 2 | ||
40GHz<f≤67GHz | 4 | ||
100GHz<f≤110GHz | 6 | ||
Frequency Resolution | 0.001Hz | ||
Frequency Switching Time | <15ms | ||
Timebase Aging Rate (typical value) | ±5×10 -10 /day (after 30-day continuous power-on) | ||
Reference Output | Frequency | 10MHz | |
Power | >+4dBm to 50 Ω load | ||
Reference Input | Frequency | 1 ~ 100MHz , steps of 1Hz | |
| Power | -5dBm ~ +10dBm, 50Ω Impedance | ||
For more detailed information, please download the PDF Datasheet above.

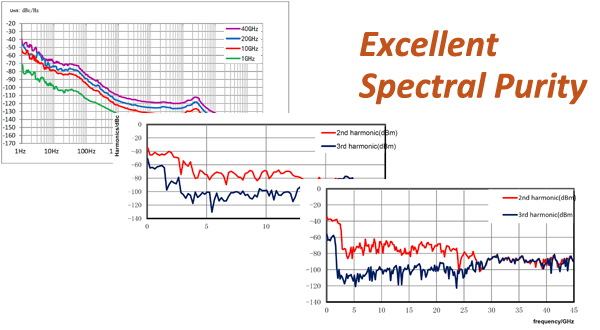

 Excellent Spectral Purity High-purity spectrum signal output SSB -145 dBc/Hz (typical value, 1 GHz carrier 10kHz frequency offset); SSB -132 dBc/Hz (typical value, 10 GHz carrier 10kHz frequency offset); SSB -161 dBc/Hz (typical value, 20 GHz carrier 30kHz frequency offset); Spurious<-80 dBc (10 GHz carrier); Harmonic<-55dBc. |
Abundant Built-in Features

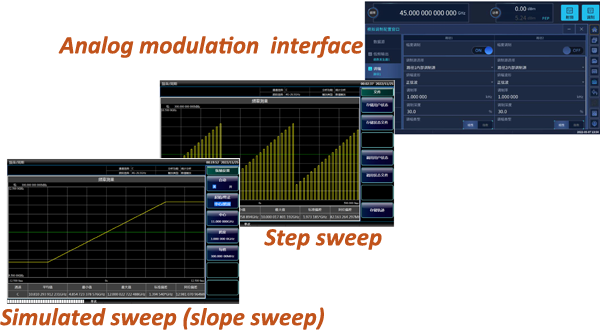

Complete Analog Modulation
amplitude modulation, frequency modulation, phase modulation, and pulse modulation
Multi Style Sweep Function
step sweep, list sweep, analog sweep (slope sweep), and power sweep
Model
Model | Name | Description |
1466-C | Signal Generator | 6kHz~13GHz |
1466-D | Signal Generator | 6kHz~20GHz |
1466-E | Signal Generator | 6kHz~33GHz |
1466-G | Signal Generator | 6kHz~45GHz |
1466-H | Signal Generator | 6kHz~53GHz |
1466-L | Signal Generator | 6kHz~67GHz |
1466-N | Signal Generator | 6kHz~90GHz |
1466-P | Signal Generator | 6kHz~110GHz |
For more detailed information, please download the PDF Datasheet above.
