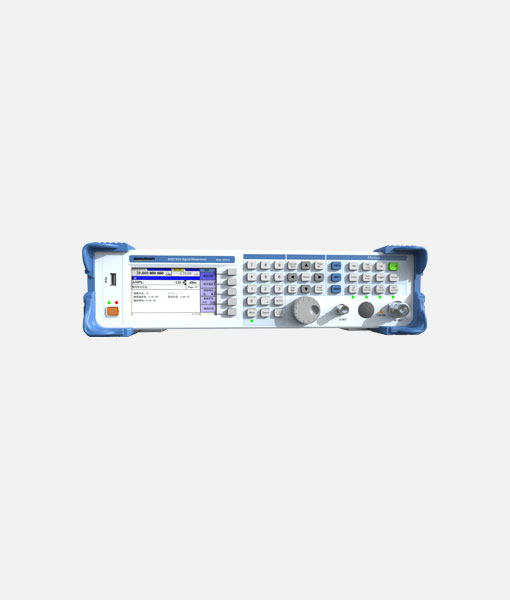

The SG2000 series microwave signal generator is positioned as a multifunctional and cost-effective signal generator. Its frequency range covers up to 20GHz and has various commonly used analog modulation functions (AM/FM/ФM) Pulse modulation function, low-frequency output function, and frequency sweep function. The rich logical hardware interfaces and wide screen LCD display, standard 2U height chassis, complete standard SCPI command set, and universal multi communication mode bring great convenience for remote control and secondary integration development.
Key Features
■ Frequency range up to 20GHz
■ SSB phase noise<-115dBc/ Hz@10 KHz
■ 130dB wide dynamic power regulation output
■ Various analog modulation AM/FM/ФM
■ Pulse modulation, up to 70dB on off ratio
Frequency Properties | ||
Frequency Range | SG2150A: 100kHz~15GHz | |
SG2200A: 9kHz~20GHz | ||
Frequency Resolution | 0.01Hz | |
Internal Reference Frequency | 10 MHz | |
Temperature Stability | ±1.0ppm | |
Internal Reference Output | 10 MHz, +8 dBm (typ.) | |
| Spectral Purity | ||
Harmonic | < -30 dBc (typ.) | |
Non-Harmonic | < -60 dBc (typ.) | |
SSB Phase Noise | Carrier Frequency Offset @f=1GHz | -115 dBc / Hz @ 10kHz offset |
Sweep Properties | ||
Sweep Mode | Step Sweep, List Sweep | |
Sweep points | Step Sweep | 2 ~ 65535 |
List Sweep | 2 ~16383 | |
Dwell time | 10ms~50s | |
Trigger mode | Free/External | |
For more detailed information, please download the PDF Datasheet above.
Model
Model | Name | Description |
SG2000A | RF Signal Generator | 100kHz~15GHz |
SG2000B | RF Signal Generator | 9kHz~20GHz |
Standard
No. | Name | Description |
| 1 | Power Cord | Standard three core power cord |
| 2 | Product certificate |
Options
Option Model | Name |
SG2000-PMC | Power meter control kit |
SG2000-RMK | Rack Mount Kit |
For more detailed information, please download the PDF Datasheet above.
