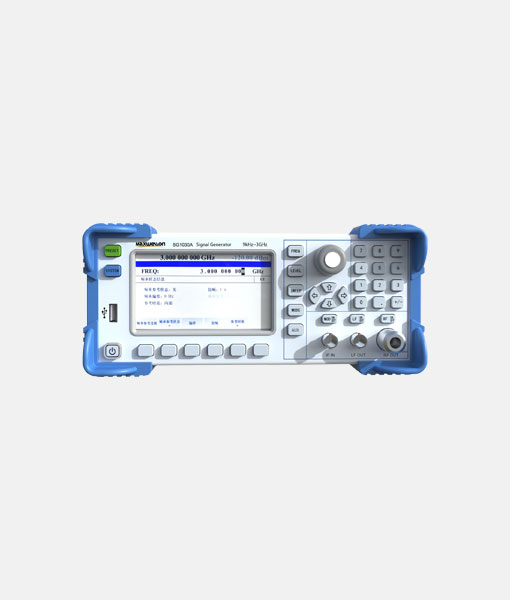

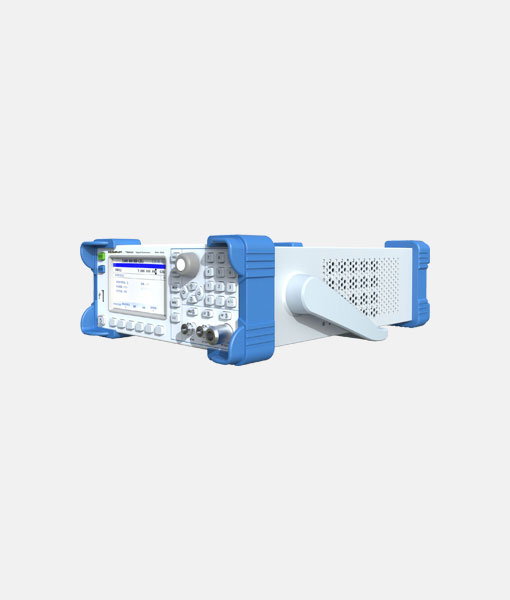

SG1030 RF signal generator provides engineers with a “Smaller, lighter and easier” solution for 3GHz signal-generation applications. While it is an entry level instrument, the SG1030 provides most commonly used functions an engineer needs such as CW signal generation, AM/FM/PM/Pulse modulation, digital modulation (ASK, FSK, PSK), Up-converting, LF output etc. SG1030 also provides flexible interfaces and support SCPI for easy remote control. SG1030 is perfect suitable for education, RF component manufacture and maintenance.
Key Features
◼︎ Frequency range from 9 kHz to 3 GHz
◼︎ Typical output power from -120dBm to +10dBm
◼︎ Sine, Square, Triangle and Saw Tooth Wave Forms
◼︎ AM, FM, PM and Pulse modulation, minimum pulse width is 100ns
◼︎ ASK, 2/4/8FSK, 2/4/8PSK
Frequency Properties | ||
Frequency Range | 9kHz ~ 3GHz | |
Frequency Resolution | 0.23 Hz | |
Internal Reference Frequency | 10 MHz | |
Temperature Stability | ±1ppm (option: ±100ppb) | |
Internal Reference Output | 10 MHz, +2 dBm (typ.) | |
Spectral Purity | ||
Harmonic | < -30 dBc (typ.) | |
Non-Harmonic | < -50 dBc (typ.) | |
SSB Phase Noise | Carrier Frequency Offset @f=300MHz | ≤-105 dBc / Hz @ 10kHz offset |
≤-115 dBc / Hz @ 100kHz offset | ||
Carrier Frequency Offset @f=1GHz | ≤-93 dBc / Hz @ 10kHz offset | |
≤-105 dBc / Hz @ 100kHz offset | ||
Sweep Properties | ||
Sweep Mode | Step Sweep, List Sweep | |
Sweep points | Step Sweep | 2 ~ 65535 |
List Sweep | 2 ~16383 | |
Dwell time | 5ms~50s | |
Trigger mode | Free/External | |
For more detailed information, please download the PDF Datasheet above.
Model
Model | Name | Description |
SG1030A | Signal Generator | 9 kHz~3.0 GHz |
SG1030B | Signal Generator | 9 kHz~3.0 GHz, built-in IQ modulator |
Standard
No. | Name | Description |
1 | Power Cord | Standard three core power cord |
2 | Product certificate |
Options
Option Model | Name |
BBG | Internal baseband data generation |
RFUC | RF upconversion device |
LFM | Linear frequency modulation function |
BBW | Real time bandwidth options |
AMK | Amplitude modulation option (SSB/DSB/CW) |
OCXO1 | High stability time base option |
PMC | Power meter control kit |
Notes:
1. This option can only be assembled and calibrated at the manufacturer's location
For more detailed information, please download the PDF Datasheet above.
