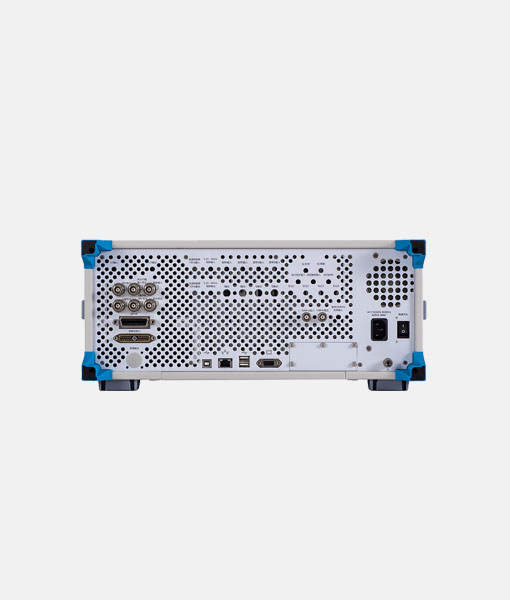

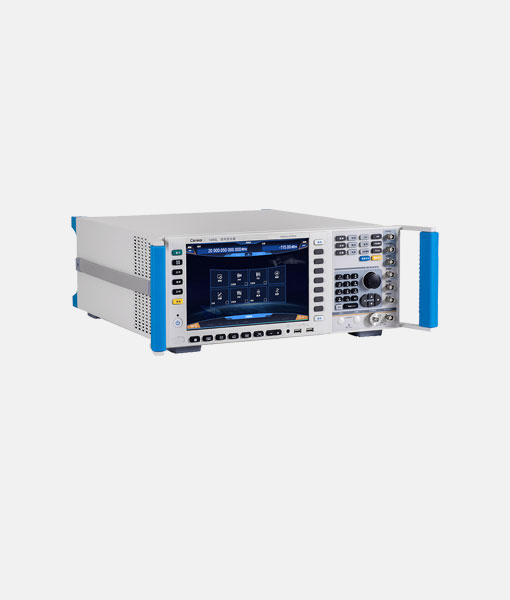

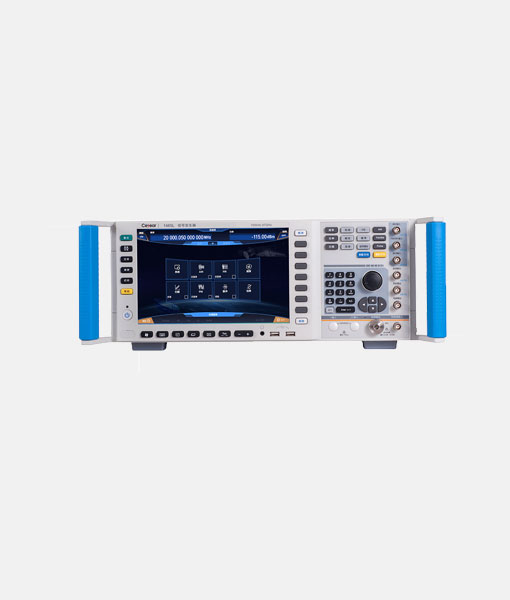

1465 series signal generators, with the frequency range of 100kHz ~ 67GHz, are provided with high purity spectrum and high output power. The single side band phase noise at 10GHz carrier and 10kHz frequency offset is -126dBc/Hz. The maximum output power reaches up to 1W at 20GHz carrier, and the dynamic output power range gets 150dB. All these specifications can meet the high-end requirements of electromagnetic signal tests. In addition, 1465 signal generators own the functions of high-precision analog sweep and high-performance analog and pulse modulation, with maximum bandwidth of internally modulated signal generator up to 10MHz, various signal waveforms, the minimum pulse width of 20ns and flexible pulse trains, which can meet the test requirements of analog and pulse modulations.
Key Features
◼︎ High Purity Spectrum
◼︎ Broadband And High-Power Output
◼︎ High Stability Frequency And Power Output
◼︎ Convenient Touch Screen Control
◼︎ Complete Frequency Band Serialization
Frequency Properties | |||
Frequency Range | 1465A: 100kHz-3GHz (Min. frequency 9kHz) 1465B: 100kHz~6GHz (Min. frequency 9kHz) 1465C: 100kHz~10GHz 1465D: 100kHz~20GHz 1465D+H06: 10MHz~20GHz 1465F: 100kHz~40GHz 1465H: 100kHz~50GHz 1465L: 100kHz~67GHz (Max. frequency of 70GHz) | Frequency | N (Internal YO harmonic number) |
100kHz≤f≤250MHz | 1/8 | ||
250MHz<f≤500MHz | 1/16 | ||
500MHz<f≤1GHz | 1/8 | ||
1GHz<f≤2GHz | 1/4 | ||
2GHz<f≤3.2GHz | 1/2 | ||
3.2GHz<f≤10GHz | 1 | ||
10GHz<f≤20GHz | 2 | ||
20GHz<f≤40GHz | 4 | ||
40GHz<f≤67GHz | 8 | ||
Frequency Resolution | 0.001Hz | ||
Frequency Switching Time | <20ms | ||
Timebase Aging Rate | ±5×10 -10 /day (after 30-day continuous power-on) | ||
Reference Output | Frequency | 10MHz | |
Power | >+4dBm to 50 Ω load | ||
Reference Input | Frequency | 1-50MHz, 1Hz step | |
Power | -5dBm ~ +10dBm, 50Ω impedance | ||
For more detailed information, please download the PDF Datasheet above.

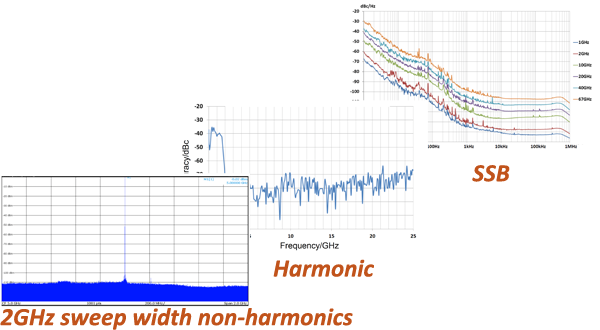

 High Purity Spectrum SSB: -126dBc/Hz@10kHz offset(typ.,10GHz carrie) SSB: -142dBc/Hz@10kHz offset(typ.,1GHz carrie) |
Broadband And High-Power Output

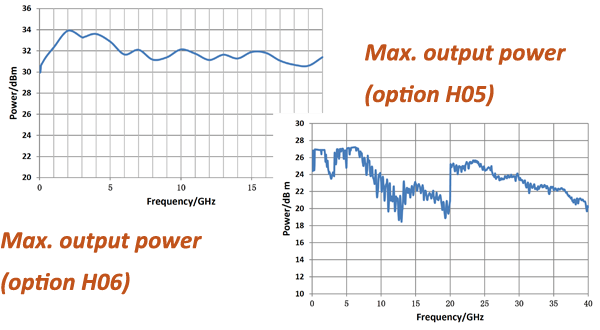

+22dBm for 20GHz
+20dBm for 40GHz
+10dBm for 67GHz
+30dBm (H6 option)
Model
Model | Name | Description |
1465-A | Signal Generator | 100kHz~3GHz |
| 1465-B | Signal Generator | 100kHz~6GHz |
1465-C | Signal Generator | 100kHz~10GHz |
1465-D | Signal Generator | 100kHz~20GHz |
1465-F | Signal Generator | 100kHz~40GHz |
1465-H | Signal Generator | 100kHz~50GHz |
1465-L | Signal Generator | 100kHz~67GHz |
For more detailed information, please download the PDF Datasheet above.
