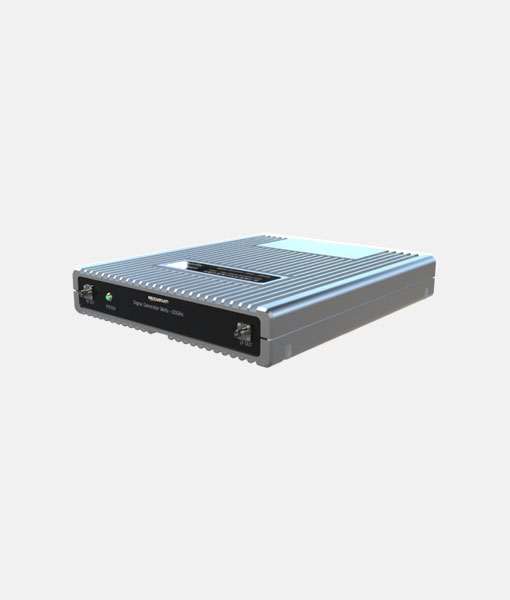

MSG150A/MSG200A microwave signal source module has ultra wide band, excellent performance and easy integration characteristics. The module has a variety of practical functions such as continuous wave signal, analog modulation, pulse modulation, amplitude/frequency sweep, low-frequency function waveform output, and has a very high cost performance ratio. The module height is standard 1U, suitable for system integration and desktop testing and measurement equipment use. The complete standard SCPI command set and universal LAN interface bring great convenience for remote control and secondary development.
Key Features
■ Frequency range up to 20GHz
■ SSB phase noise<-115dBc/ Hz@10 KHz
■ Output power -120dBm to+10dBm
■ Various analog modulation AM/FM/ФM
■ Pulse modulation, up to 70dB on off ratio
Frequency Properties | ||
Frequency Range | MSG150A: 100kHz~15GHz | |
MSG200A: 9kHz~20GHz | ||
Frequency Resolution | 0.01Hz | |
Internal Reference Frequency | 10 MHz | |
Temperature Stability | ±1.0ppm | |
Internal Reference Outpu | 10 MHz, +8 dBm (typ.) | |
| External Reference Output | 0 dBm~+10 dBm | |
| Spectral Purity | ||
Harmonic | < -30 dBc (typ.) | |
Non-Harmonic | < -60 dBc (typ.) | |
SSB Phase Noise | Carrier Frequency Offset @f=1GHz | -115 dBc / Hz @ 10kHz offset |
For more detailed information, please download the PDF Datasheet above.
Model
Model | Name | Description |
MSG150A | Signal Generator Module | 100kHz~15GHz |
MSG200A | Signal Generator Module | 9kHz~20GHz |
Standard
No. | Name | Description |
| 1 | Power Cord | DC: +12V ± 5%/2 A |
| 2 | Product certificate |
For more detailed information, please download the PDF Datasheet above.
