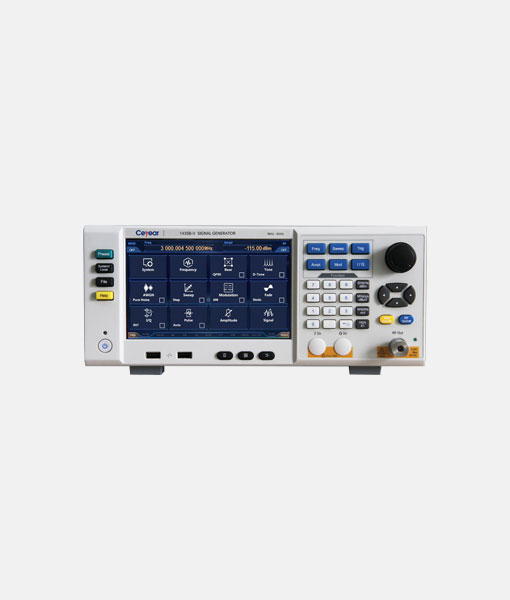

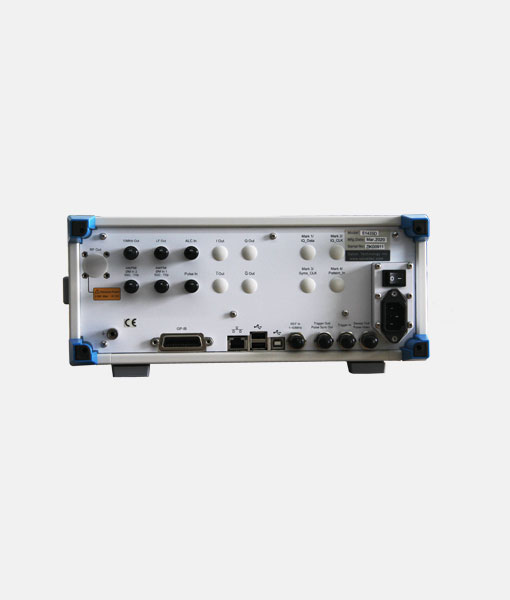

Based on innovative technologies, the 1435-V series signal generator achieves balance in terms of performance, economy and volumetric weight. It supports arbitrary modulation of wave data downloaded in 5 formats, and enables users to edit, download, and configure the waveforms as required to complete various signal simulations and meet the testing requirements of various complex signals. Its baseband signal generator is easy to set up and has excellent performance. It supports real-time occurrence of general digital modulation signals in more than 20 formats such as PSK, QAM, FSK and MSK. It also has excellent spectral purity, with a single side band (SSB) phase noise of -136dBc/Hz (when the carrier is 1GHz and the frequency offset is 10kHz) or -120dBc/Hz (when the carrier is 6GHz and the frequency offset is 10kHz).
Key Features
◼︎ Wide frequency coverage
◼︎ High output power
◼︎ Excellent SSB phase noise
◼︎ Extremely short frequency switching time
◼︎ High performance pulse modulation
Frequency Properties | |||
Frequency Range | 1435A-V:9kHz~3GHz 1435B-V:9kHz~6GHz | Frequency | N (Internal YO harmonic number) |
9kHz≤f<250MHz | 1/8 | ||
250MHz<f≤375MHz | 1/16 | ||
375MHz<f≤750MHz | 1/8 | ||
750MHz<f≤1.5GHz | 1/4 | ||
1.5GHz<f≤3GHz | 1/2 | ||
3GHz<f≤6GHz | 1 | ||
Frequency Resolution | 0.001Hz | ||
Frequency Switching Time | <1ms (typical value） | ||
Timebase Aging Rate | Standard: ±5×10-7/year (after continuous switch-on for 30 days) High Stability Time Base option H10: ±5×10-10 /day (after 30-day continuous power-on) | ||
Reference Output | Frequency | 10MHz | |
Power | >+4dBm to 50 Ω load | ||
Reference Input | Frequency | 1-50MHz, 1Hz step | |
Power | 0dBm~+7dBm, 50Ω impedance | ||
For more detailed information, please download the PDF Datasheet above.

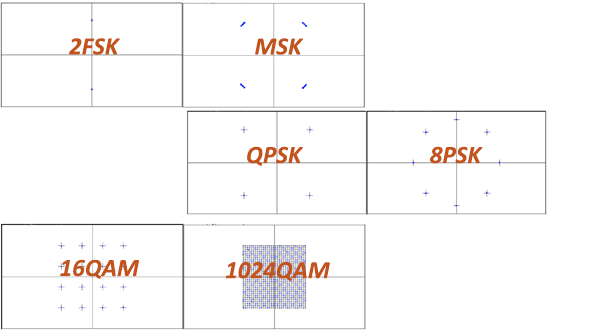

 Complete Universal Digital Modulation Modes real-time occurrence of universal digital modulation signals more than 20 formats PSK, QAM, FSK and MSK |

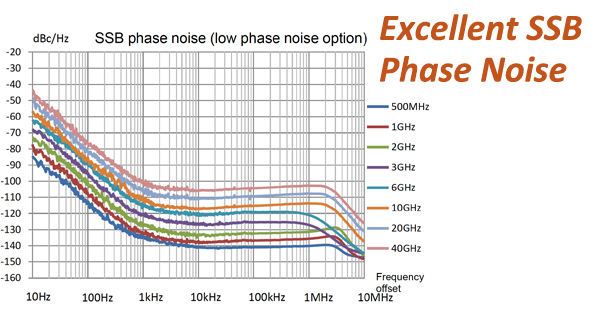

Excellent SSB Phase Noise
-104dBc/Hz (6GHz@10kHz, standard)
-120dBc/Hz (6GHz@10kHz, low phase noise option)
Model
Model | Name | Description |
1435A-V | Vector Signal Generator | 9kHz~3GHz |
1435B-V | Vector Signal Generator | 9kHz~6GHz |
For more detailed information, please download the PDF Datasheet above.
