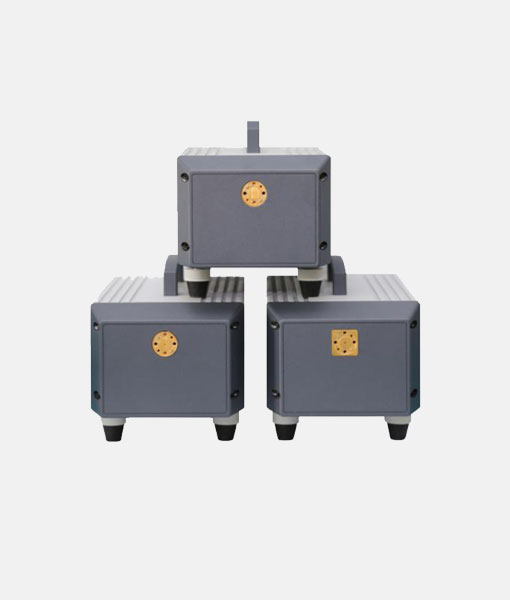

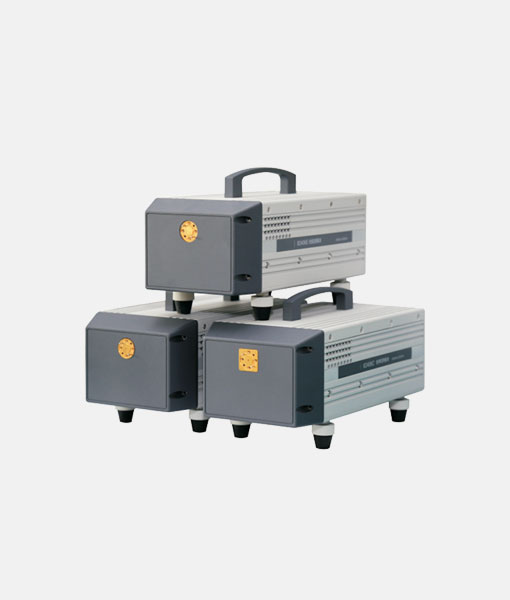

Maxwellon TW82401/TW82406 series millimeter-wave source modules excel in terms of output power and application convenience. This series source module can work together with a microwave signal generator to build up a millimeter-wave signal generation system. The module is fed and controlled by the RF signal and software through corresponding special cables, respectively.The output frequency and power are controlled by the synthesized signalsource. A special power adapter provides the DC drive for the modules.
Key Features
◼︎Wide frequency range: 50GHz-500GHz
◼︎Power Supply: 15V adapter
◼︎Input frequency: < 24GHz
◼︎Built-in high-gain microwave amplifier
◼︎Compact and portable
Model | 82406 | 82401N | 82406A | 82401QA | 82406B | 82406C | 82401SA | 82406D | 82401TA | 82406E |
Output Frequency (GHz) | 50 to 75 | 60 to 90 | 75 to 110 | 90 to 140 | 110 to 170 | 170 to 220 | 170 to 260 | 220 to 325 | 260 to 400 | 325 to 500 |
Output power (dBm) | ≥+13 | ≥+11 | ≥+10 | ≥+5 | ≥+2 | ≥-2 | ≥-6 | ≥-8 | ≥-12 | ≥-18 |
16 (typ.) | 13 (typ.) | 15 (typ.) | 10 (typ.) | 9 (typ.) | 2 (typ.) | 0 (typ.) | -3 (typ.) | -6 (typ.) | -10 (typ.) | |
Multiplication counts | 4 | 6 | 6 | 6 | 12 | 12 | 12 | 18 | 18 | 36 |
Amplitude-stabilized options | Yes | Yes | Yes | Yes | Yes | NA | NA | NA | NA | NA |
Input frequency range (GHz) | 12.5-18.75 | 10.0 -15.0 | 12.50 -18.33 | 15.0 -23.3 | 9.17 -14.17 | 14.17 -18.33 | 14.17 -21.67 | 12.2 -18.06 | 14.44 - 22.22 | 9.02 -13.89 |
For more detailed information, please download the PDF Datasheet above.
Model
Model | Name | Description |
82406 | Source Module | Frequency Range: 50 to 75GHz |
82401N | Source Module | Frequency Range: 60 to 90 GHz |
82406A | Source Module | Frequency Range: 75 to 110 GHz |
82401QA | Source Module | Frequency Range: 90 to 140 GHz |
82406B | Source Modul | Frequency Range: 110 to 170 GHz |
82406C | Source Module | Frequency Range: 170 to 220 GHz |
82401SA | Source Module | Frequency Range: 170 to 260 GHz |
82406D | Source Module | Frequency Range: 220 to 325 GHz |
82401TA | Source Module | Frequency Range: 260 to 400 GH |
82406E | Source Module | Frequency Range: 325 to 500 GHz |
For more detailed information, please download the PDF Datasheet above.
