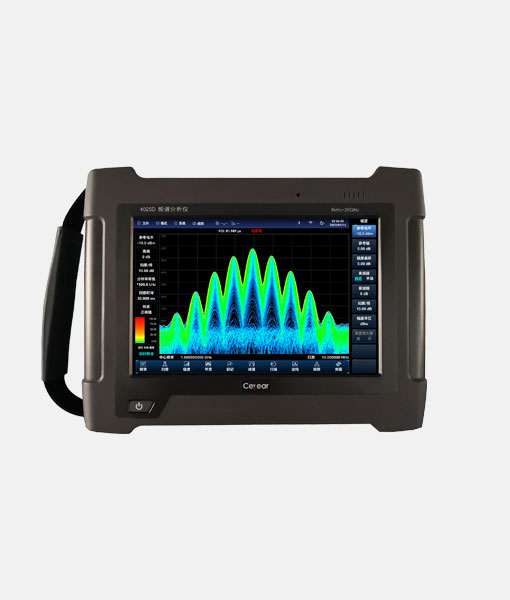

The 4025 Spectrum analyzer is a new generation of high-performance handheld Spectrum analyzer launched by Maxwellon. Its frequency measurement range covers 9kHz~20GHz. It is mainly used for the installation, commissioning, maintenance and interference troubleshooting of outdoor wireless communication equipment. It is small in size, light in weight, strong in environmental adaptability, flexible in power supply, and convenient in operation.
Key Feature
◼︎9kHz~20GHz, low frequency expandable to 5kHz
◼︎DALN: -165 dBm/Hz (2MHz~2 GHz, preamplifier on, Typ.)
◼︎SSB: -113dBc/Hz@100kHz Offset@1GHz carrier
◼︎Multiple Measurement Function Modes
◼︎Multiple Field Testing Attachments Selection
Frequency Range | 9kHz~20GHz |
Frequency Reference | Nominal Frequency: 10MHz Aging Rate: ±5×10-7/year Initial Frequency Accuracy:±3×10-7 Temperature Stability: ±1×10-7(-20℃+55℃) Frequency Reference Error=± (Until the last calibration date × Aging rate+temperature stability+calibration accuracy) Note: The default calibration time until the last calibration is 1 year, and this indicator is guaranteed by the crystal oscillator manufacturer |
Sweep Time | Range: 1μs~6000s(zero sweep width) Accuracy: ± 1.0% (zero sweep width) |
Frequency Reading Accuracy | ±(Frequency Reading × Frequency Reference Error+1% × Sweep Width+10% × Resolution Bandwidth) |
Sweep Width | Range: 0Hz (zero sweep width), 10Hz~20GHz Accuracy: ± 1.0% |
Video Bandwidth | Bandwidth Range: 1Hz-20MHz(in steps of 1-2-3-5-8) |
Resolution Bandwidth | Bandwidth Range: 1Hz-20MHz(in steps of 1-2-3-5-8) |
SSB Phase Noise (Carrier 1GHz,+15℃ to+35℃) | ≤-108dBc/Hz@10kHz ≤-110dBc/Hz@100kHz ≤-118dBc/Hz@1MHz ≤-129dBc/Hz@10MHz |
For more detailed information, please download the PDF Datasheet above.

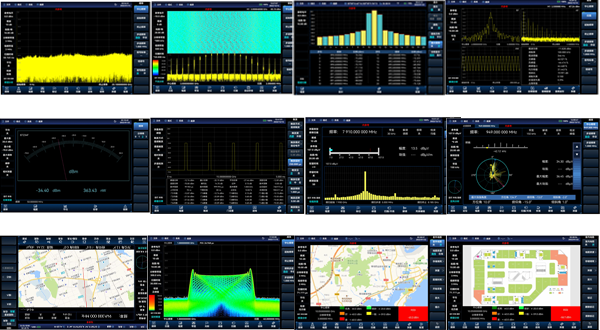

 Abundant Measurement Function Modes And Options ◼︎ Spectrum Analysis ◼︎ Interference Analysis ◼︎ Channel Sweep ◼︎ Analog Demodulation Analysi ◼︎ USB Peak Power Measurement ◼︎ Field Strength Measurement ◼︎ Directional Analysis ◼︎ 40MHz Bandwidth Real-Time Spectrum Analysis ◼︎ Outdoor Map ◼︎ Indoor Map |

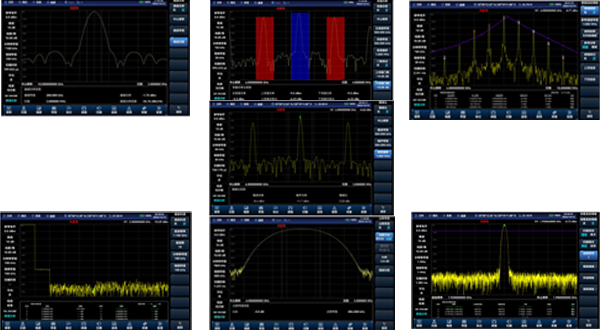

Comprehensive Intelligent Measurement Functions
◼︎ Channel Power
◼︎ Occupied Bandwidth
◼︎ Adjacent Channel Power
◼︎ Spectrum Emission Template
◼︎ Carrier to Noise Ratio(CNR)
◼︎ Harmonic Distortion
◼︎ Spurious Emission Template
Model
Model | Name | Description |
4025 | Handheld Spectrum Analyze | 9 kHz~20 GHz |
For more detailed information, please download the PDF Datasheet above.
