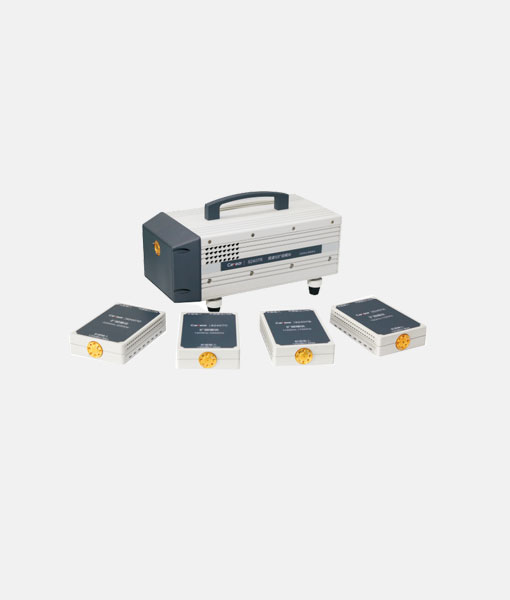

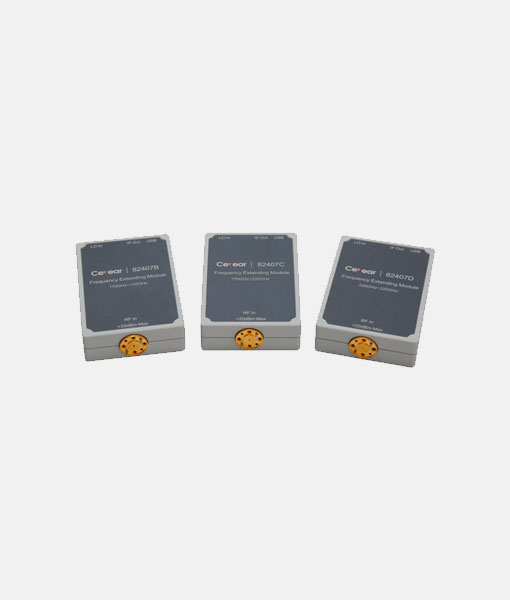

Maxwellon 82407 series Spectrum Analyzer Frequency Extension Module are designed mainly for millimeter-wave frequency extension of spectrum analysis, adopts standard waveguide interface which corresponding to its frequency range as its input interface. LO input adopts 2.4mmfemale coaxial connector and IF output adopts 3.5mm female coaxial connector, it can be used as the front-end of millimeter-wave signal receiver.
Key Feature
◼︎ Wide frequency range cover from 50GHz to 750GHz
◼︎ DANL: -150dBm @ 1Hz RBW (typical)
◼︎ USB interface
◼︎ 82407/NB/A/B/C/D size: 72 ×26 ×112mm
◼︎ 82407NC/QA/TA/R size: 120×85×240 mm
Model | 82407 | 82407NB | 82407A | 82407B | 82407C | 82407D |
Frequency Range | 50-75 | 60-90 | 75-110 | 110-170 | 170-220 | 220-325 |
Harmonics | 5 | 6 | 7 | 9 | 7 | 9 |
Conversion Loss | 24 | 24 | 28 | 36 | 40 | 48 |
Noise Level (dBm/Hz) | -132 | -132 | -130 | -120 | -115 | -110 |
LO Power Range | 8-12(dBm) | |||||
RF Max. Input Level (dBm) | 20(dBm) | |||||
Dimension | W×H×D ≤110×75×25.2mm | |||||
For more detailed information, please download the PDF Datasheet above.
Model | Name | Description |
82407 | Frequency Extension Module | 50GHz to 75 GHz |
82407NB | Frequency Extension Module | 60GHz to 90 GHz |
82407NC | Frequency Extension Module | 60GHz to 90 GHz |
82407A | Frequency Extension Module | 75GHz to 110 GHz |
82407QA | Frequency Extension Module | 90 GHz to 140 GHz |
82407B | Frequency Extension Module | 110GHz to 170 GHz |
82407C | Frequency Extension Module | 220GHz to 325 GHz |
82407D | Frequency Extension Module | 260GHz to 400 GHz |
82407TA | Frequency Extension Module | 325GHz to 500 GHz |
| 82407R | Frequency Extension Module | 500GHz to 750GHz |
For more detailed information, please download the PDF Datasheet above.
