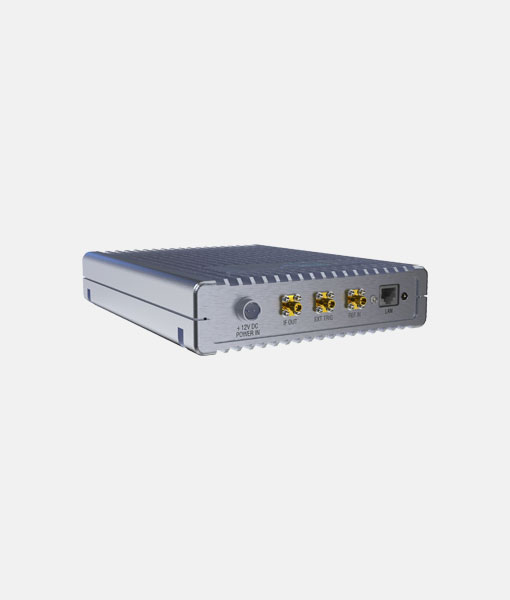

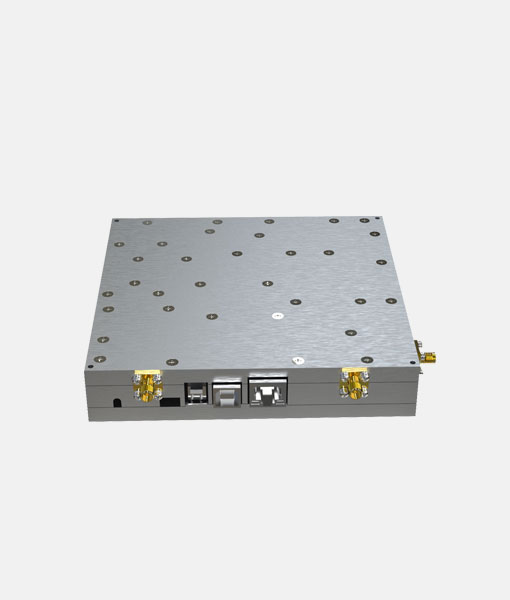

Maxwellon MSA800 series spectrum analyzer module is the perfect choice for system integration with excellent performance, small size and high cost performance. Users can connect it with a PC to display the test screen, just click the mouse on the PC to enjoy the convenience and speed of the desktop spectrum analyzer. It can also be integrated into your system to develop related functions of spectrum analysis. The modular design of MSA800 will bring great convenience to user testing and save costs at the same time. The PC host computer directly obtains the measurement results through the USB or LAN interface. Users can flexibly carry out secondary development according to their needs, and can quickly build and upgrade the integrated test system.
Key Feature
◼︎ Frequency range: 9kHz - 1.8GHz/3.6GHz / 7.5GHz
◼︎ Resolution bandwidth: 1Hz -3MHz
◼︎ Sensitive, DANL < -158dBm
◼︎ Adopt USB, LAN interface, easy to control connection
◼︎ Standard and complete SCPI
Model | MSA820A | MSA830 | MSA870 |
Frequency Range | 9kHz~1.8GHz | 9kHz~3.6GHz | 9kHz~7.5GHz |
Frequency Reading Accuracy | ± (Frequency standard reading × Frequency reference accuracy+1% × Sweep width+10% × RBW+0.5 × [Sweep width/(Sweep point -1)]+1Hz) | ||
Internal Reference (10MHz) | Standard: Aging rate:<1ppm/year, Temperature drift:<0.5ppm (15℃ to 35℃) | ||
For more detailed information, please download the PDF Datasheet above.
Model | Name | Description |
MSA820A | Spectrum Analyzer Module | 9kHz - 1.8GHz |
MSA830 | Spectrum Analyzer Module | 9kHz - 3.6GHz |
MSA870 | Spectrum Analyzer Module | 9kHz - 7.5GHz |
For more detailed information, please download the PDF Datasheet above.
