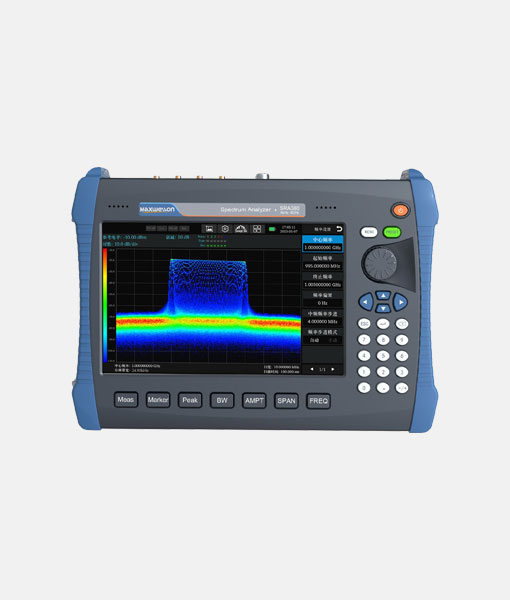

RSA080 is a broadband, high-performance portable real-time spectrum analyzer that measures frequencies ranging from 5 kHz to 8 GHz, making it suitable for both indoor and outdoor environments. The product adopts 10.1 inch LED backlight high brightness display screen, supporting multi touch operation. Equipped with real-time spectrum, swept frequency spectrum, vector network analysis, antenna feeder measurement, field strength measurement, USB power measurement, interference localization and demodulation analysis measurement modes, it is convenient for users to diagnose and solve various RF measurement problems on site. The medium mirror frequency suppression of up to 80 dB and minimal residual response indicators enable it to meet the higher requirements of wireless monitoring.
Key Feature
◼︎ Frequency range: 5kHz~8GHz
◼︎ Maximum real-time bandwidth: 40MHz
◼︎ Minimum signal duration at 100% POI of 7us
◼︎ Up to 80dB medium mirror frequency suppression
◼︎ 10.1-inch high brightness display screen
Frequency Range | 5kHz~8GHz |
Real-Time Analysis Bandwidth | 40MHz |
Min. Signal Duration at 100% POI | 7us |
Phase Noise | -98dBc/Hz@10kHz |
Window Function Types | Hanning, Blackman-Harris, rectangular, flat-top, Caesar, Gaussian |
Max. Sampling Rate | 51.2MHz |
Display Modes | Density Spectrum, Waterfall, Power vs Time |
Real Time Storage Depth | 512MB |
Trigger Mode | External Trigger, IF Power, PPS Second Pulse, Gated Scanning, Frequency Template |
For more detailed information, please download the PDF Datasheet above.
Model | Name | Description |
SRA080 | Handheld Real-time Spectrum Analyzer | 5kHz - 8GHz |
For more detailed information, please download the PDF Datasheet above.
