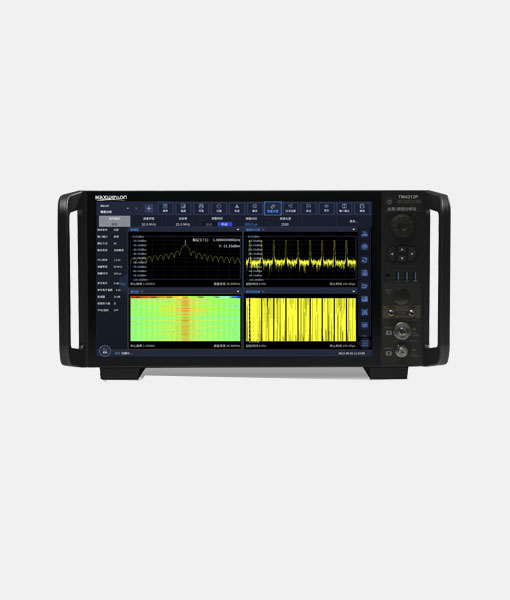

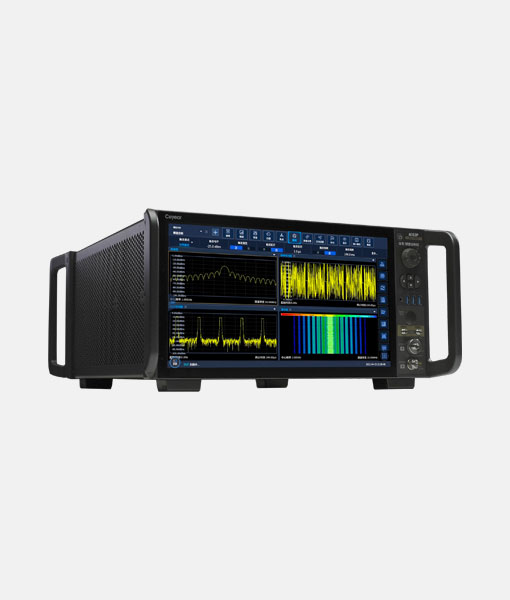

4082 series Signal/Spectrum Analyzer is a new signal/Spectrum analyzer product launched by Maxwellon.
It has excellent RF performance in DANL, Phase Noise, Intermodulation Suppression, Dynamic Range, Amplitude Accuracy, and Testing Speed. It Has Powerful Spectrum Analysis, Standard Power Measurement Suite, I/Q Analysis, Transient Analysis, Pulse Signal Analysis, Real-Time Spectrum Analysis, Analog Modulation Analysis, Vector Signal Analysis and other measurement functions.
Good scalability, capable of building test systems or conducting secondary development through various digital and analog output interfaces. The analysis bandwidth of up to 2GHz, combined with corresponding software analysis options, meets your stringent requirements for signal and equipment testing in fields such as mobile communication, satellite communication, Internet of Things, and semiconductors.
Key Feature
◼︎2Hz~110GHz Broadband Coaxial Coverage
◼︎Phase Noise: -134dBc/Hz
◼︎Built In 2GHz Analysis Bandwidth
◼︎2GHz Bandwidth I/Q Data Stream Interface
◼︎Powerful Satellite Rf Testing Function
Frequency Range | Model | DC Coupling | AC Coupling |
4082 B | 2Hz~8.4GHz | 2Hz~8.4GHz | |
4082 D | 2Hz~18GHz | 2Hz~18GHz | |
4082 E | 2Hz~26.5GHz | 2Hz~26.5GHz | |
4082 F | 2Hz~45GHz | 2Hz~45GHz | |
4082 H | 2Hz~50GHz | 2Hz~50GHz | |
4082 L | 2Hz~67GHz | 2Hz~67GHz | |
4082 N | 2Hz~90GHz | / | |
4082 P | 2Hz~110GHz | / | |
10MHz Frequency Reference | Frequency Accuracy: ±(up to the last calibration date × aging rate+temperature stability+calibration accuracy | ||
Aging Rate: ±5×10-10/year | |||
Temperature Stability: ±5×10-8 | |||
Frequency Reading Accuracy | ±(frequency reading × frequency reference accuracy+0.1% bandwidth+5% resolution bandwidth+2Hz+0.5 horizontal resolution*) *Horizontal resolution=bandwidth/(scan points -1) | ||
Frequency Counting Accuracy | ±(frequency reading×Frequency reference accuracy+0.1Hz) | ||
For more detailed information, please download the PDF Datasheet above.

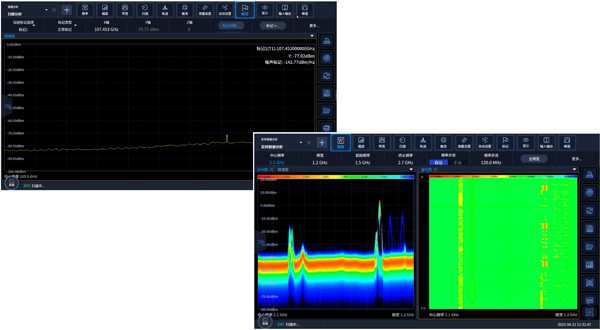

Excellent Spectrum Measurement Performance The frequency measurement range covers 2Hz~110GHz Extremely Low DANL:110GHz: -140dBm/Hz Phase Noise: -134dBc/Hz@1GHz carrier(10kHz offset） 1.2GHz Analysis Bandwidth Excellent SFDR:-75dBc(200MHz BW) |
Comprehensive Pulse Signal Analysis Function

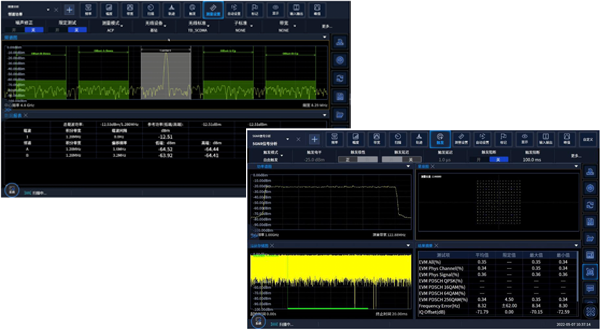

5G NR Signal Analysis
LTE,NB-IoT,WCDMA,GSM Signal Analysis
Analysis of Out of Band Characteristics
Abundant Pulse Parameter Measurement
Intrapulse Characteristic Analysis
Interpulse Characteristic Analysis
Model
Model | Name | Description |
4082B | Signal/ Spectrum Analyzer | 2Hz~8.4GHz |
4082D | Signal/ Spectrum Analyzer | 2Hz~18GHz |
4082E | Signal/ Spectrum Analyzer | 2Hz~26.5GHz |
4082F | Signal/ Spectrum Analyzer | 2Hz~45GHz |
4082H | Signal/ Spectrum Analyzer | 2Hz~50GHz |
4082L | Signal/ Spectrum Analyzer | 2Hz~67GHz |
4082N | Signal/ Spectrum Analyzer | 2Hz~90GHz |
4082P | Signal/ Spectrum Analyzer | 2Hz~110GHz |
For more detailed information, please download the PDF Datasheet above.
