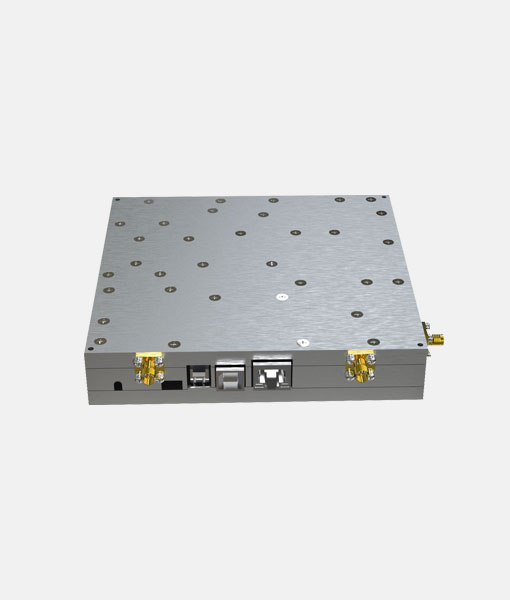

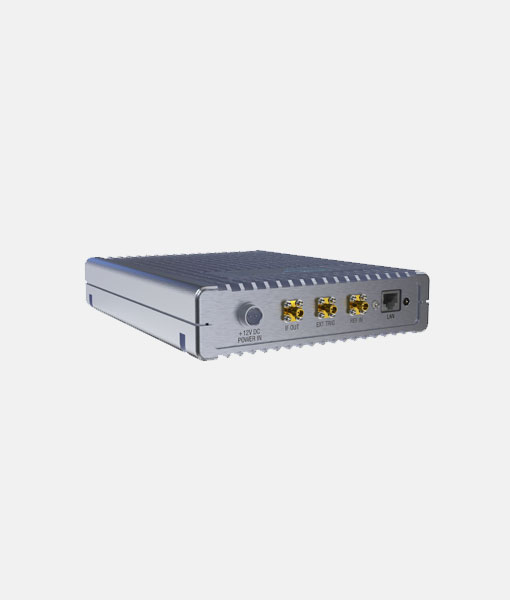

MSA080/200 Spectrum Analyzer Module

Maxwellon MSA080/200 series spectrum analyzer module is a wide-band, high-performance spectrum analyzer. The frequency measurement range covers up to 20GHz. The main technical indicators are comparable to the desktop spectrum analyzer. The integrated design of highly integrated RF front-end and digital processing enables it to have ultra-small size and independent signal processing capabilities, especially suitable for microwave test system integration and signal monitoring sensor applications. The product adopts fully digital IF processing technology to ensure higher measurement accuracy and excellent repeatability, and has independent signal processing capability, which is especially suitable for system integration and signal monitoring applications. The maximum real-time bandwidth of 40MHz meets the test of common radio signals such as mobile communication, TV and WiFi, and the 145MHz analog IF output provides users with a variety of test options.

Key Feature

◼︎ Frequency range: 5kHz - 8GHz / 9kHz - 20GHz

◼︎Resolution bandwidth: 1Hz -5MHz

◼︎Sensitive, DANL < -160dBm

◼︎Maximum real-time bandwidth: 40MHz

◼︎145MHz analog IF output
