The HSA800 series spectrum analyzer is designed specifically for on-site operations. It is lightweight, portable, fast and precise, sturdy and durable, with rich measurement functions, making it the perfect choice for pursuing excellent performance and outstanding value.

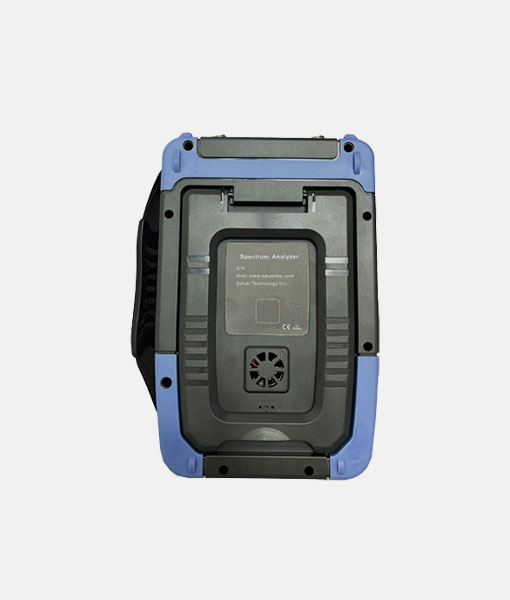

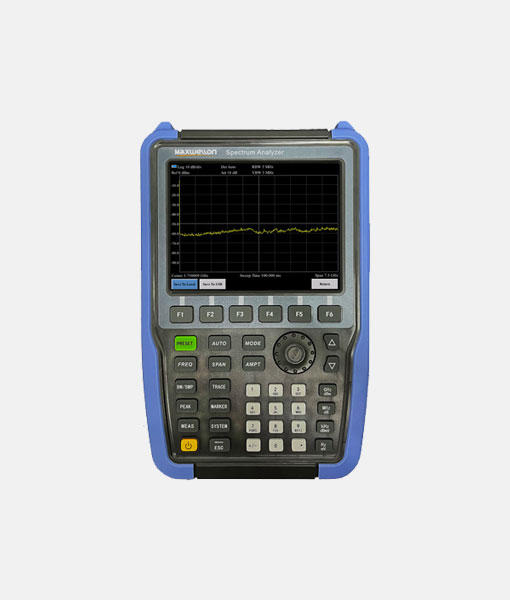

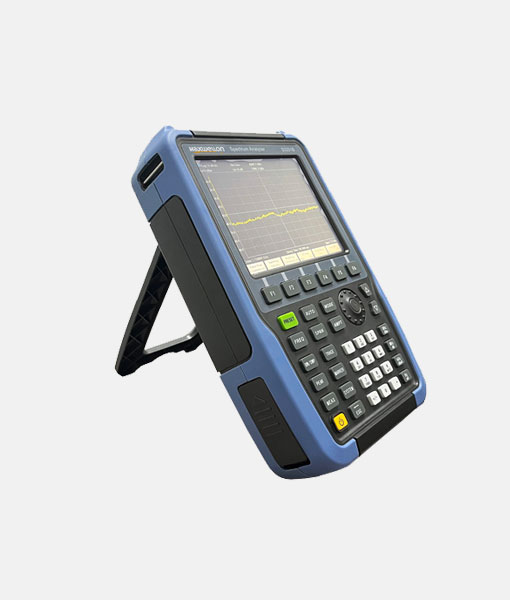

The HSA800t adopts a high brightness 6.5-inch large screen, with a dynamic appearance and clear graphics. Large capacity rechargeable battery, with a continuous working time of up to 4 hours. The push cover battery compartment is easy to replace at any time and has unlimited extension of operating time. Equipped with options such as built-in tracking source, preamplifier, field strength measurement, GPS/BD navigation measurement, and antenna feeder testing, it can quickly and reliably solve various conventional measurement tasks and adapt to harsh and complex environmental requirements.
Key Feature
◼︎ Frequency range: 9kHz~1.8GHz/2.5GHz/3.6GHz/7.5GHz
◼︎Noise level: better than -160dBm
◼︎Resolution bandwidth: 1Hz-3MHz
◼︎S11 and S21, GPS/BD navigation measurement
◼︎Fully charged for up to 4 hours
Model | HSA818 | HSA820 | HSA830 | HSA870 |
Frequency Range | 9kHz~1.8GHz | 9kHz~2.5GHz | 9kHz~3.6GHz | 9kHz~7.5GHz |
Frequency Reading Accuracy | ± (Frequency standard reading × Frequency reference accuracy+1% × Sweep width+10% × RBW+0.5 × [Sweep width/(Sweep point -1)]+1Hz) | |||
Internal Reference(10MHz) | Aging Rate: <1ppm/ year | |||
Temperature Drift: <0.5ppm (15℃ to 35℃) | ||||
For more detailed information, please download the PDF Datasheet above.
Model | Name | Description |
HSA818 | Handheld Spectrum Analyzer | 9kHz ~ 1.8GHz |
HSA820 | Handheld Spectrum Analyzer | 9kHz ~ 2.5GHz |
HSA830 | Handheld Spectrum Analyzer | 9kHz ~ 3.6GHz |
HSA870 | Handheld Spectrum Analyzer | 9kHz ~ 7.5GHz |
For more detailed information, please download the PDF Datasheet above.
