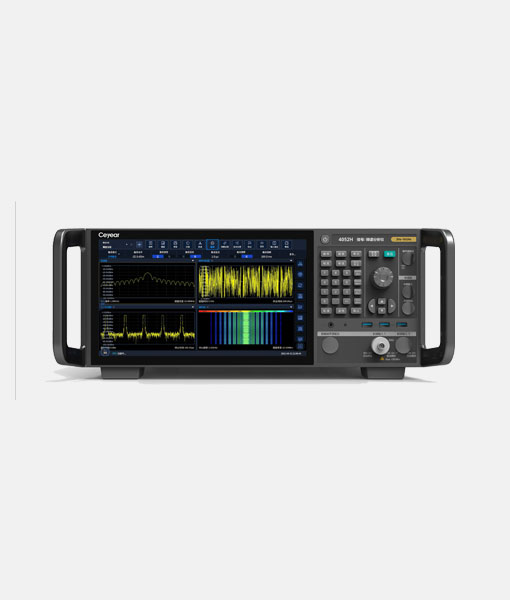

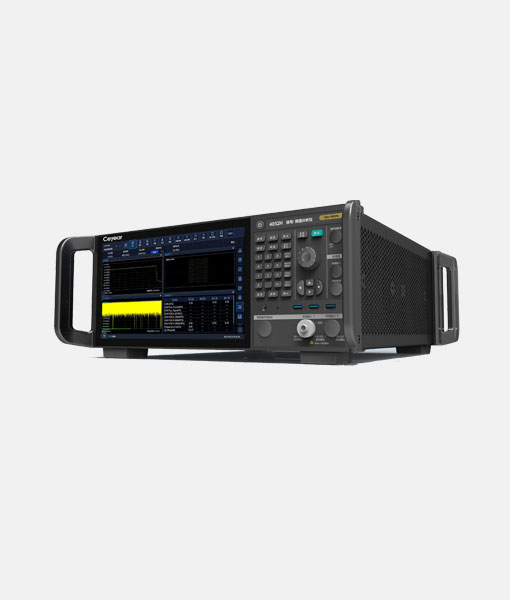

4052 series Signal/Spectrum Analyzer is a new signal/Spectrum analyzer product launched by Maxwellon.4052 has excellent testing dynamic range, phase noise, amplitude accuracy and testing speed, and has rich testing functions such as Spectrum Analysis, I/Q Analysis, Real-Time Spectrum Analysis, Transient Analysis, Vector Signal Analysis, Pulse Analysis, Audio Analysis, etc.As a multi-functional general Signal/Spectrum Analyzer, 4052 has good expansion capability, and can build a test system or conduct secondary development through a variety of digital and analog output interfaces. With excellent performance and flexible application, it can meet your testing needs for rapid production of signals and equipment in fields such as wireless communication, automotive electronics, low orbit satellites, and the Internet of Things.
Key Feature
◼︎ 2Hz~50GHz Coaxial Frequency Coverage Range
◼︎ 1.2GHz Analysis Bandwidth, Flexible Selection From 10MHz to 1.2GHz
◼︎ Phase Noise:-122dBc/Hz(1GHz carrier at 10KHz frequency offset)

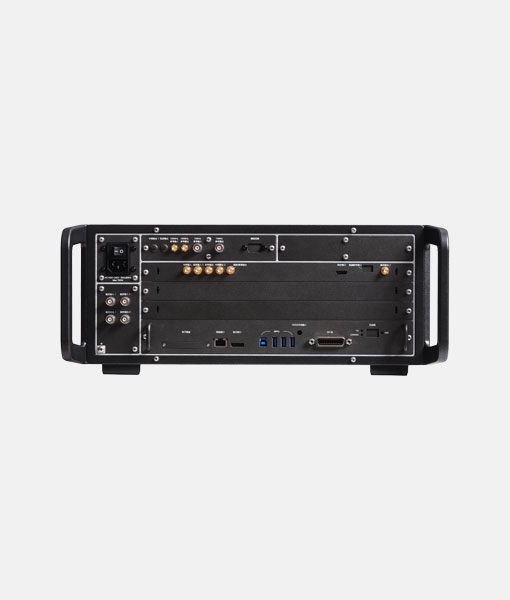

◼︎ 10 Gigabit Ethernet Interface
◼︎ Full Bandwidth Real-Time Recording And Playback
Frequency Range | Model | DC Coupling | AC Coupling |
4052 A | 2Hz~4GHz | 10MHz~4GHz | |
4052 B | 2Hz~8GHz | 10MHz~8GHz | |
4052 C | 2Hz~13.6GHz | 10MHz~13.6GHz | |
4052 D | 2Hz~18GHz | 10MHz~18GHz | |
4052 E | 2Hz~26.5GHz | 10MHz~26.5GHz | |
4052 F | 2Hz~40GHz | 10MHz~40GHz | |
4052 G | 2Hz~45GHz | 10MHz~45GHz | |
4052 H | 2Hz~50GHz | 10MHz~50GHz | |
10MHz Frequency Reference | Frequency Accuracy: ±(up to the last calibration date × aging rate+temperature stability+calibration accuracy | ||
Aging Rate: ±1×10-10/year | |||
Temperature Stability: ±5×10-8 | |||
Calibration Accuracy: ± 4×10-8 | |||
Frequency Reading Accuracy | ±(frequency reading × frequency reference accuracy+0.1% bandwidth+5% resolution bandwidth+2Hz+0.5 horizontal resolution*) *Horizontal resolution=bandwidth/(scan points -1) | ||
Frequency Counting Accuracy | ±(frequency reading×Frequency reference accuracy+0.1Hz) | ||
For more detailed information, please download the PDF Datasheet above.

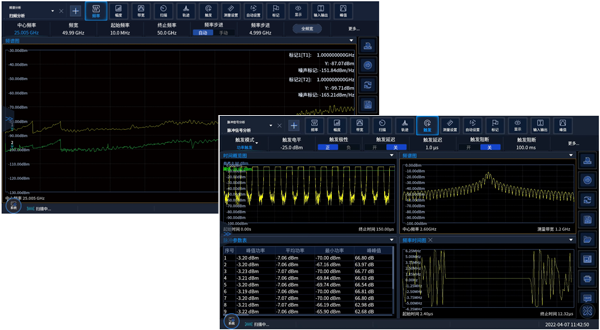

 Excellent Spectrum Measurement Performance ◼︎Excellent DANL:-154dBm/Hz(1GHz) ◼︎Excellent amplitude measurement accuracy:± 0.5dB ◼︎1.2GHz Analysis Bandwidth ◼︎Excellent SFDR: -75dBc(at 200MHz analysis bandwidth) -65dBc(at 1.2GHz analysis bandwidth) |

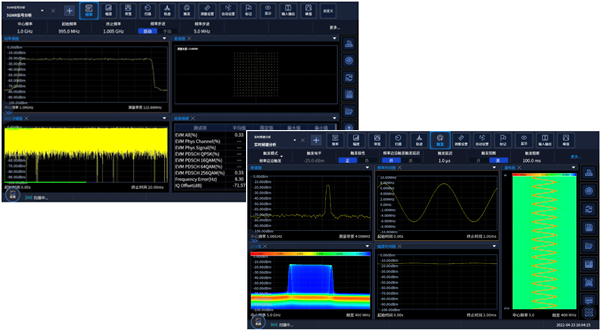

Powerful Real-time Spectrum Analysis Function
◼︎5G NR Signal Analysis
◼︎LTE, NB IoT, WCDMA, GSM Signal Analysis
◼︎Real time analysis bandwidth up to 400MHz
Model
Model | Name | Description |
4052A | Signal/ Spectrum Analyzer | 2Hz~4GHz |
4052B | Signal/ Spectrum Analyzer | 2Hz~8GHz |
4052C | Signal/ Spectrum Analyzer | 2Hz~13.6GHz |
4052D | Signal/ Spectrum Analyzer | 2Hz~18GHz |
4052E | Signal/ Spectrum Analyzer | 2Hz~26.5GHz |
4052F | Signal/ Spectrum Analyzer | 2Hz~40GHz |
4052G | Signal/ Spectrum Analyzer | 2Hz~45GHz |
4052H | Signal/ Spectrum Analyzer | 2Hz~50GHz |
For more detailed information, please download the PDF Datasheet above.
