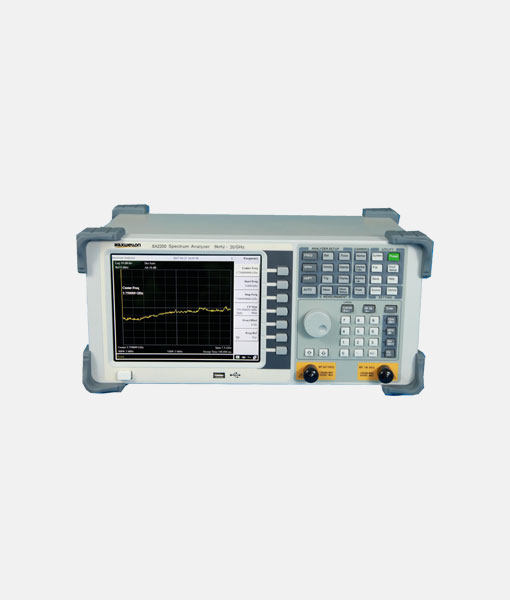

Maxwellon SA2080/2200 series spectrum analyzer is a wide-band, high-performance analyzer with a frequency measurement range of 5kHz-8GHz/18GHz. Highly integrated RF front-end and full digital IF technology ensure its excellent performance and stable performance. The maximum real-time bandwidth of 40MHz meets the test of common radio signals such as mobile communication, TV and WiFi, and the 145MHz analog IF output provides users with a variety of test options. It has a variety of intelligent measurement functions such as spectrum analysis, network measurement, field strength measurement, channel scanning, third-order intermodulation, harmonic distortion, carrier-to-noise ratio and Pass-Fail.
Key Feature
◼︎ Frequency range: 5kHz - 8GHz / 9kHz - 20GHz
◼︎ DANL <-160dBm
◼︎ Resolution bandwidth: 1Hz -5MHz
◼︎ Maximum real-time bandwidth: 40MHz
◼︎ 145MHz analog IF output
Model | SA2080 | SA2200 |
Frequency Range | 5kHz~8GHz | 9kHz~20GHz |
Frequency Reading Accuracy | ± (Frequency standard reading × Frequency reference accuracy+1% × Sweep width+10% × RBW+0.5 × [Sweep width/(Sweep point -1)]+1Hz) | |
Internal Reference (10MHz) | Standard: Aging rate:<1ppm/year, Temperature drift:<0.5ppm (15℃ to 35℃) | |
High stability time base option: Aging rate:<0.2ppm/year, Temperature drift:<0.1ppm (15℃ to 35℃) | ||
For more detailed information, please download the PDF Datasheet above.
Model | Name | Description |
SA2080 | Spectrum Analyzer | 5kHz - 8GHz |
SA2200 | Spectrum Analyzer | 9kHz - 20GHz |
For more detailed information, please download the PDF Datasheet above.
