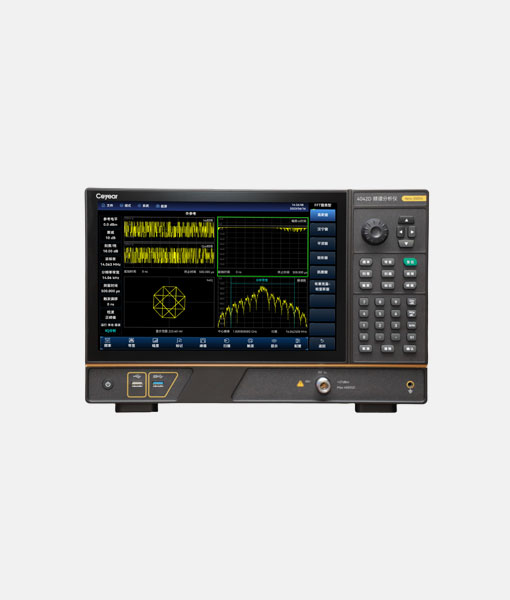

The 4042 series Spectrum analyzer is a basic Spectrum analyzer newly launched by Maxwellon, and its frequency measurement range covers 9kHz~20GHz. 4042 series Spectrum analyzer adopts a portable structure with a weight of less than 6.5kg, which has multiple advantages such as wide working frequency band, high performance indicators, fast sweep speed, multiple test functions, portability and easy operation.
Key Feature
◼︎ 9kHz~9GHz/20GHz, standard full band preamplifier
◼︎ DANL: -163 dBm/Hz (10 MHz ~ 2 GHz, preamplifier on, Typ.)
◼︎ SSB:-113dBc/Hz@100kHz offset@1GHz carrier
◼︎ Multiple Measurement Function Modes
◼︎ Multiple Intelligent Measurement Functions
Frequency Range | 4042B:9kHz~9GHz 4042D:9kHz~20GHz |
Frequency Reference | Nominal Frequency: 10MHz Aging Rate: ±5×10-7/year Initial Frequency Accuracy:±3×10-7 Temperature Stability: ±1×10-7(-20℃+55℃) Frequency Reference Error=± (Until the last calibration date × Aging rate+temperature stability+calibration accuracy) Note: The default calibration time until the last calibration is 1 year, and this indicator is guaranteed by the crystal oscillator manufacturer |
Sweep Time | Range: 1μs~6000s(zero sweep width) Accuracy: ± 1.0% (zero sweep width) |
Frequency Reading Accuracy | ±(Frequency Reading × Frequency Reference Error+1% × Sweep Width+10% × Resolution Bandwidth) |
Sweep Width | Range: 0Hz (zero sweep width), 10Hz~20GHz Accuracy: ± 1.0% |
Resolution Bandwidth | Bandwidth Range: 1Hz-20MHz(in steps of 1-2-3-5-8) |
Video Bandwidth | Bandwidth Range: 1Hz-20MHz(in steps of 1-2-3-5-8) |
SSB Phase Noise (Carrier 1GHz,+15→ to+35→) | ≤-108dBc/Hz@10kHz ≤-110dBc/Hz@100kHz ≤-118dBc/Hz@1MHz ≤-129dBc/Hz@10MHz |
For more detailed information, please download the PDF Datasheet above.

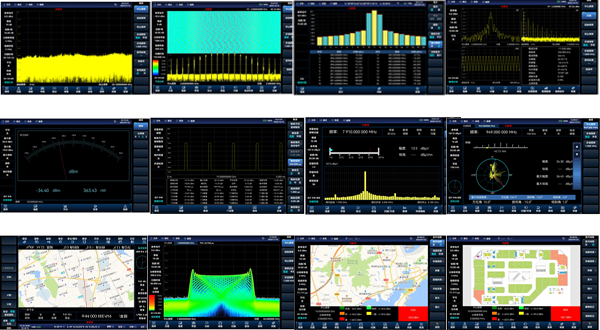

Abundant Measurement Function Modes And Options ◼︎ Spectrum Analysis ◼︎ Interference Analysis ◼︎ Channel Sweep ◼︎ Analog Demodulation Analysis ◼︎ USB Peak Power Measurement ◼︎ Field Strength Measurement ◼︎ Directional Analysis ◼︎ 40MHz Bandwidth Real-Time Spectrum Analysis ◼︎ Outdoor Map ◼︎ Indoor Map |

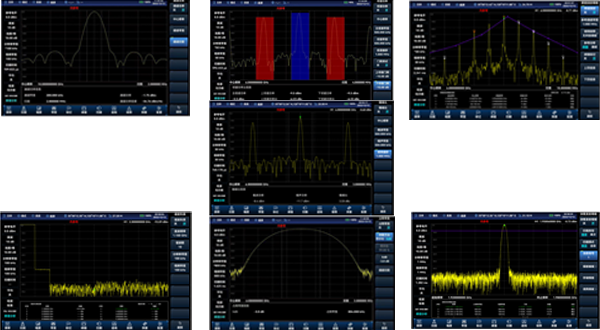

Comprehensive Intelligent Measurement Functions
◼︎ Channel Power
◼︎ Occupied Bandwidth
◼︎ Adjacent Channel Power
◼︎ Spectrum Emission Template
◼︎ Carrier to Noise Ratio(CNR)
◼︎ Harmonic Distortion
◼︎ Spurious Emission Template
Model
Model | Name | Description |
4042B | Spectrum/Signal Analyzers | 9 kHz~9GHz |
4042D | Spectrum/Signal Analyzers | 9 kHz~20 GHz |
For more detailed information, please download the PDF Datasheet above.
