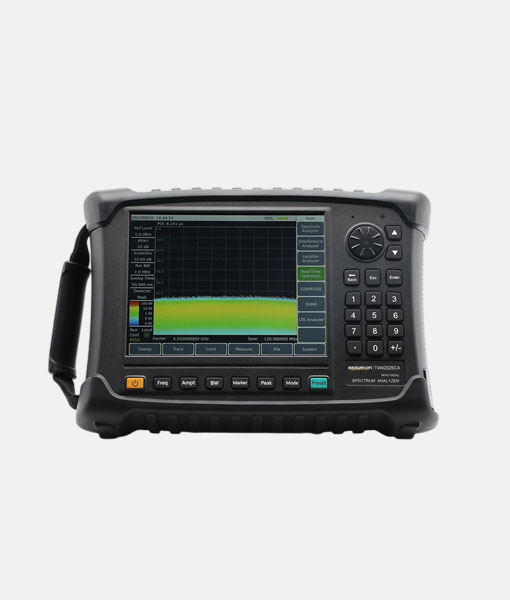

Maxwellon TW4202SCA is a handheld broadband real-time spectrum analyzer designed for field test.The maximun real-time analysis bandwidth reaches 120MHz. It has real-time spectrum analysis, 5GNR demodulation analysis, LTD FDD/TDD demodulation analysis, GSM/EDGE demodulation analysisi, directional analysis and other measurement functions modes, as well as field strength measurement, channel power, occupied bandwidth, adjacent channel power, audio demodulation, harmonic distortion, spectral emission mask/spurious emission mas, indoor/outdoor map measurement. It adpots 8.4inch large screen LCD and capacitivie touch screen integrated design to facilitate user operation. The structure adopts a handheld chassis, which is samll in size, light weight, flexible in power supply, easy to maneuver, and is extremely suitable for on-site use.
Key Feature
◼︎9kHz to 9GHz
◼︎RTSA, 5G NR demodulation
◼︎LTE FDD/TDD demodulation
◼︎GSM/EDGE demodulation
◼︎Real-time spectrum analysis
Frequency Range | TW4202SCA: 9 kHz to 9 GHz, Frequency Resolution:1Hz |
Frequency Reference | Frequency: 10MHz Aging: ±0.5ppm/Year Initial Frequency Accuracy: ±0.3ppm Temperature Stability:±0.1ppm( -10~50℃, Comparative to 25℃) |
Sweep Time | Range: 10μs~6000s (Zero Span) Accuracy: ±2.00% (Zero Span) |
Frequency Readout Accuracy | ±(Frequency Readout× frequency Reference +2%× Span +10%×Resolution Bandwidth) |
Frequency Span | Range: 100Hz~9GHz or 0Hz Accuracy: ±2.0% |
Resolution Bandwidth | 1Hz~10MHz (1~3 Times of Stepping) |
Video Bandwidth | 1Hz~10MHz (1~3 Times of Stepping) |
For more detailed information, please download the PDF Datasheet above.

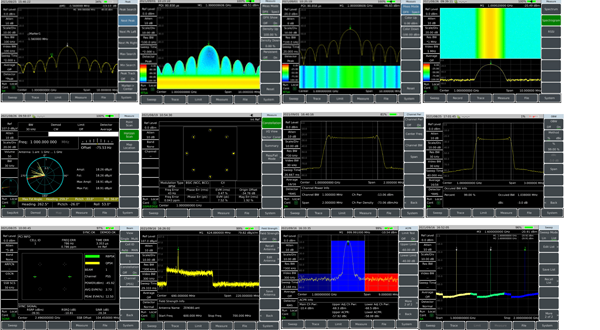

 5G/4G/3G Measurement Options ◼︎5G NR Measuremen ◼︎4G LTE Measurement ◼︎GSM/EDGE Measurement ◼︎RTSA Persistence Mode ◼︎ Interference Analysis Mode ◼︎Field Strength Measurement ◼︎ Directional Analysis Mode ◼︎Adjacent-Channel Power Ratio ◼︎SpurEmissionMask |

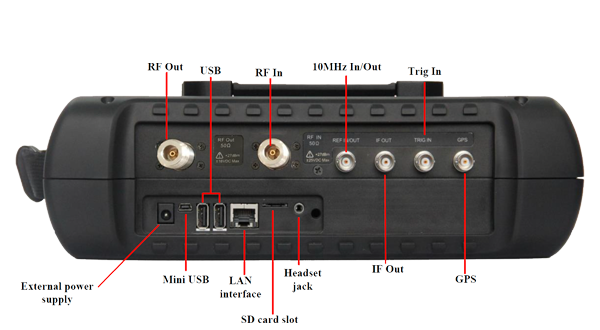

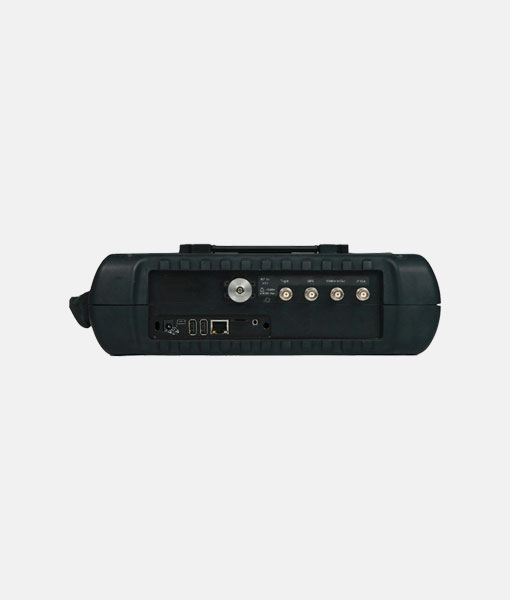

Various Auxiliary Test Interfaces
Model
Model | Name | Description |
TW4202SCA | Handheld Spectrum Analyzer | 9 kHz~9 GHz |
For more detailed information, please download the PDF Datasheet above.
