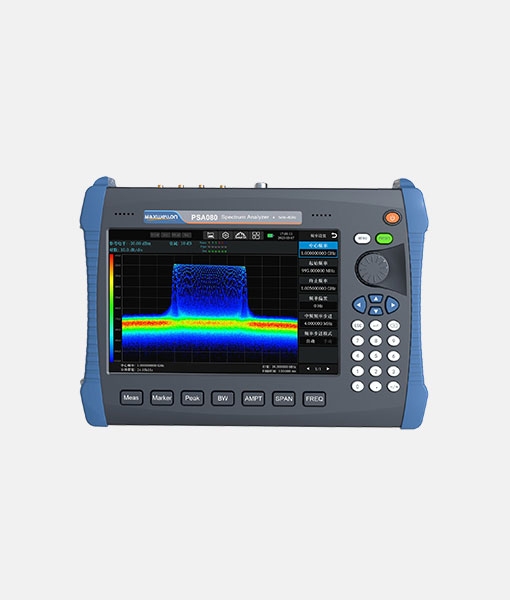

The PSA080/200 spectrum analyzer is a broadband, high-performance portable microwave spectrum analyzer that measures frequencies ranging from 5 kHz to 8 GHz/9 kHz to 20 GHz. It can be used in both indoor and outdoor environments.
The product adopts 10.1 inch LED backlight high brightness display screen, supporting multi touch operation, with multiple intelligent measurement functions such as spectrum Analysis, Network Measurement, Field Strength Measurement, Channel Scanning, Third-Order Intermodulation, Harmonic Distortion, Carrier To Noise Ratio, and Pass-Fail. Highly integrated RF front-end and fully digital IF technology ensure excellent performance and stable performance, with a maximum real-time bandwidth of 40 MHz to meet the testing of commonly used radio signals such as mobile communication, television, and WiFi.
Key Feature
◼︎ Frequency range: 5kHz~8GHz/9kHz~20GHz
◼︎ Noise level: better than -160dBm
◼︎ Resolution bandwidth: 1Hz~5MHz
◼︎ Maximum real-time bandwidth: 40MHz
◼︎ Built-in GPS/BD function module
Model | PSA080 | PSA200 | |
Frequency Range | 5kHz~8GHz | 9kHz~20GHz | |
Frequency Reading Accuracy | ± (Frequency standard reading × Frequency reference accuracy+1% × Sweep width+10% × RBW+0.5 × [Sweep width/(Sweep point -1)]+1Hz) | ||
Internal Reference (10MHz) | Standard | Aging rate:<1ppm/year | Aging rate:<0.5ppm/year |
Temperature drift:<0.5ppm (15℃ to 35℃ | Temperature drift:<0.2ppm (15℃ to 35℃) | ||
High stability time base option | Aging rate:<0.2ppm/year | ||
Temperature drift:<0.1ppm (15℃ to 35→℃ | |||
For more detailed information, please download the PDF Datasheet above.
Model | Name | Description |
PSA080 | Handheld Spectrum Analyzer | 5kHz - 8GHz |
PSA200 | Handheld Spectrum Analyzer | 9kHz - 20GHz |
For more detailed information, please download the PDF Datasheet above.
