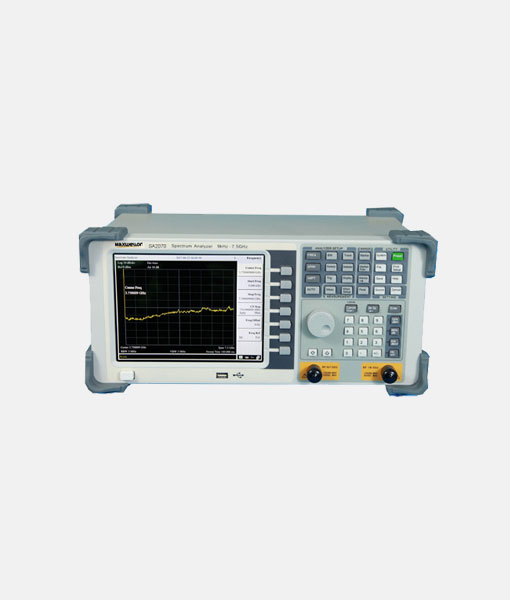

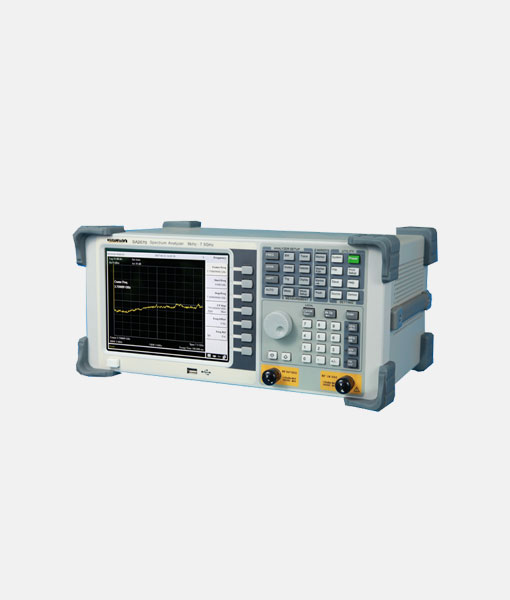

Maxwellon SA2000 series spectrum analyzer reaches max. 7.5GHz with excellent performance. Pre-amplifier, AM/FM demodulation, Interference analysis, limit line, OBW, ACPR etc, all these useful functions are provided as standard. SA2000 series spectrum analyzer is equipped with an optional tracking source. Meanwhile user can also choose a build-in CW source which can extend the ability of SA2000 spectrum analyzer.
Key Feature
◼︎ Frequency range from 9kHz to 3.6GHz/ 7.5GHz
◼︎ DANL <-150dBm, <-161dBm (typ.)
◼︎ Audio analysis
◼︎ SCPI supported
◼︎ Max. 3GHz tracking source and CW source
Model | SA2031 | SA2070 |
Frequency Range | 9kHz~3.6GHz | 9kHz~7.5GHz |
Frequency Reading Accuracy | ± (Frequency standard reading × Frequency reference accuracy+1% × Sweep width+10% × RBW+0.5 × [Sweep width/(Sweep point -1)]+1Hz) | |
Internal Reference (10MHz) | Aging rate:<1ppm/year | |
Temperature drift:<0.5ppm (15℃ to 35℃) | ||
For more detailed information, please download the PDF Datasheet above.
Model | Name | Description |
SA2031 | Spectrum Analyzer | 9kHz - 3.6GHz |
SA2070 | Spectrum Analyzer | 9kHz - 7.5GHz |
For more detailed information, please download the PDF Datasheet above.
