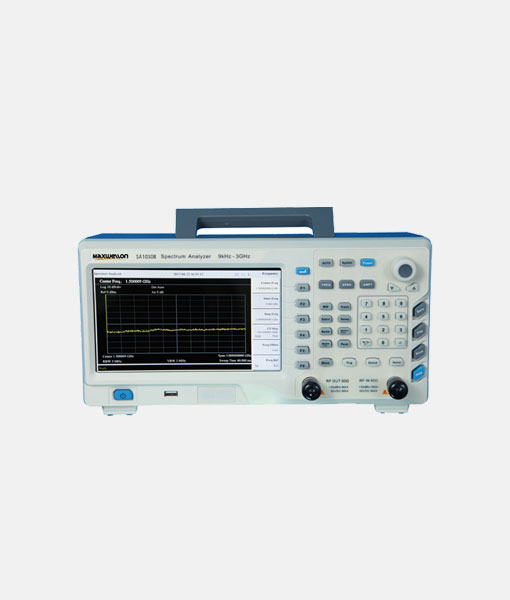

The SA1000 series portable spectrum analyzer adopts an ABS mold and is portable and lightweight. The full digital intermediate frequency and embedded integrated control system ensure its excellent performance and stable performance, surpassing expectations for high cost-effectiveness, making it easy for users in various fields such as research and development, production, teaching and training to have it. Rich and friendly human-machine interface, bilingual menus in both Chinese and English, easy to operate, easy to learn and use, making the testing world more convenient and enjoyable.
Key Feature
◼︎ Frequency range: 9kHz~1.8GHz/3.0GHz/3.6GHz
◼︎ Resolution bandwidth of 1Hz-3MHz
◼︎ Noise level better than -158dBm
◼︎ Waterfall plot, frequency counting, audio demodulation
◼︎ 8-inch highlight color display
Model | SA1010B | SA1030B | SA1030C |
Frequency Range | 9kHz~1.8GHz | 9kHz~3.0GHz | 9kHz~3.6GHz |
Frequency Reading Accuracy | ± (Frequency standard reading × Frequency reference accuracy+1% × Sweep width+10% × RBW+0.5 × [Sweep width/(Sweep point -1)]+1Hz) | ||
Aging rate:<1ppm/year | |||
Temperature drift:<0.5ppm (15℃ to 35℃) | |||
For more detailed information, please download the PDF Datasheet above.
Model | Name | Description |
SA1010B | Spectrum Analyzer | 9kHz - 1.8GHz |
SA1030B | Spectrum Analyzer | 9kHz - 3.0GHz |
SA1030C | Spectrum Analyzer | 9kHz - 3.6GHz |
For more detailed information, please download the PDF Datasheet above.
