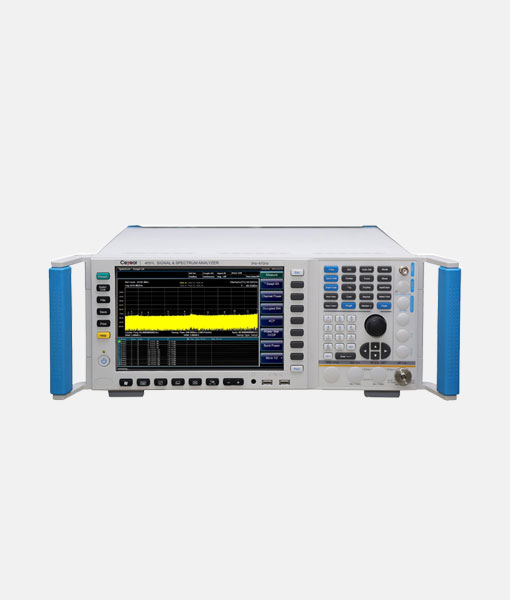

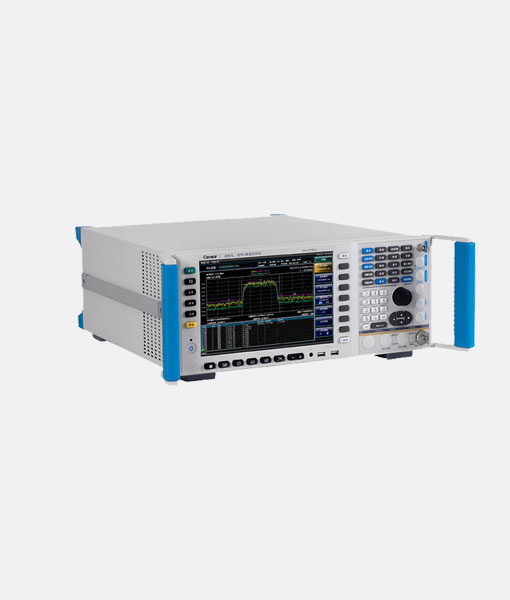

Maxwellon 4051 series signal / spectrum analyzer has excellent performance in dynamic range, phase noise, amplitude accuracy, and measurement speed. It have high-sensitivity spectrum Analyzer, standard power measurement components, IQ Analyzer, Vector Signal Analyzer, Real-Time Spectrum Analyzer, Transient Analyzer, Pulse Signal Analyzer, Audio Analyzer, Analog Demodulation measurement, Phase Noisemeasurement and Noise Figure,etc.
Key Feature
◼︎ 3Hz~4/9/13.2/18/26.5/40/45/50/67/85GHz
◼︎ Maximum 1GHz Analysis Bandwidth
◼︎ Excellent measurement & receiving performance
◼︎ Comprehensive spectrum analysis capability
◼︎ Abundant measurement application functions
Frequency Range | Model | DC Coupling | AC Coupling |
4051 A | 3Hz~4GHz | 10MHz~4GHz | |
4051 B | 3Hz~9GHz | 10MHz~9GHz | |
4051 C | 3Hz~13.2GHz | 10MHz~13.2GHz | |
4051 D | 3Hz~18GHz | 10MHz~18GHz | |
4051 E | 3Hz~26.5GHz | 10MHz~26.5GHz | |
4051 F | 3Hz~40GHz | 10MHz~40GHz | |
4051 G | 3Hz~45GHz | 10MHz~45GHz | |
4051 H | 3Hz~50GHz | 10MHz~50GHz | |
4051 L | 3Hz~67GHz | / | |
4051 N | 3Hz~85GHz | / | |
10MHz Frequency Reference | Frequency Accuracy: ±(up to the last calibration date × aging rate+temperature stability+calibration accuracy | ||
Aging Rate: ±1×10-7 /year | |||
Temperature Stability: ±1.5×10-8 (20°C~30°C); ±5×10-8 (0°C~55°C) | |||
Calibration Accuracy: ± 4×10-8 | |||
Frequency Reading Accuracy | ±(frequency reading × frequency reference accuracy+0.1% bandwidth+5% resolution bandwidth+2Hz+0.5 horizontal resolution*) *Horizontal resolution=bandwidth/(scan points -1) | ||
Frequency Counting Accuracy | ±(frequency reading×Frequency reference accuracy+0.1Hz) | ||
For more detailed information, please download the PDF Datasheet above.

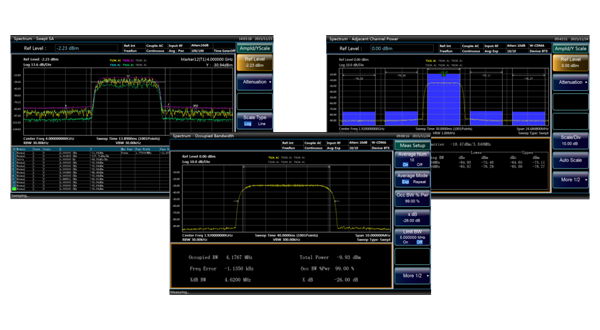

Comprehensive Spectrum Analysis Capability Support frequency sweep and FFT sweep Zero frequency band fast sweep, the fastest sweep time is 1μs Accurate frequency counting, counting resolution can be 0.001Hz Sweep point number can be arbitrarily selected among 101~30001 Configured with 6 traces, Abundant marker operation functions 6 trace detector modes, 3 average types Time gate measurement |

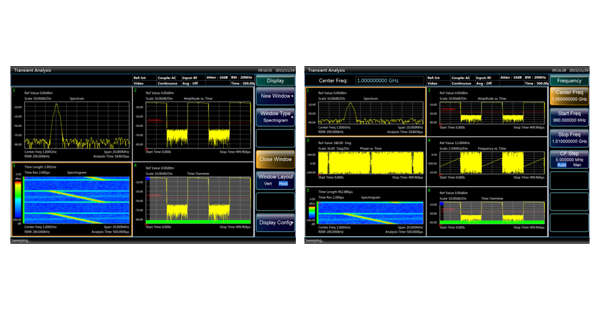

Transient Analysis And Signal Playback Analysis
Waterfall diagram display
500Msamples (64bits accuracy) seamless capture data storage
Multiple storage formats of signal files: CSV, DATetc.
Support the playback analysis of signal files
Model
Model | Name | Description |
4051A | Signal/ Spectrum Analyzer | 3Hz~4GHz |
4051B | Signal/ Spectrum Analyzer | 3Hz~9GHz |
4051C | Signal/ Spectrum Analyzer | 3Hz~13.2GHz |
4051D | Signal/ Spectrum Analyzer | 3Hz~18GHz |
4051E | Signal/ Spectrum Analyzer | 3Hz~26.5GHz |
4051F | Signal/ Spectrum Analyzer | 3Hz~40GHz |
4051G | Signal/ Spectrum Analyzer | 3Hz~45GHz |
4051H | Signal/ Spectrum Analyzer | 3Hz~50GHz |
| 4051L | Signal/ Spectrum Analyzer | 3Hz~67GHz |
| 4051N | Signal/ Spectrum Analyzer | 3Hz~85GHz |
| 4051N | Signal/ Spectrum Analyzer | 3Hz~90GH |
For more detailed information, please download the PDF Datasheet above.
